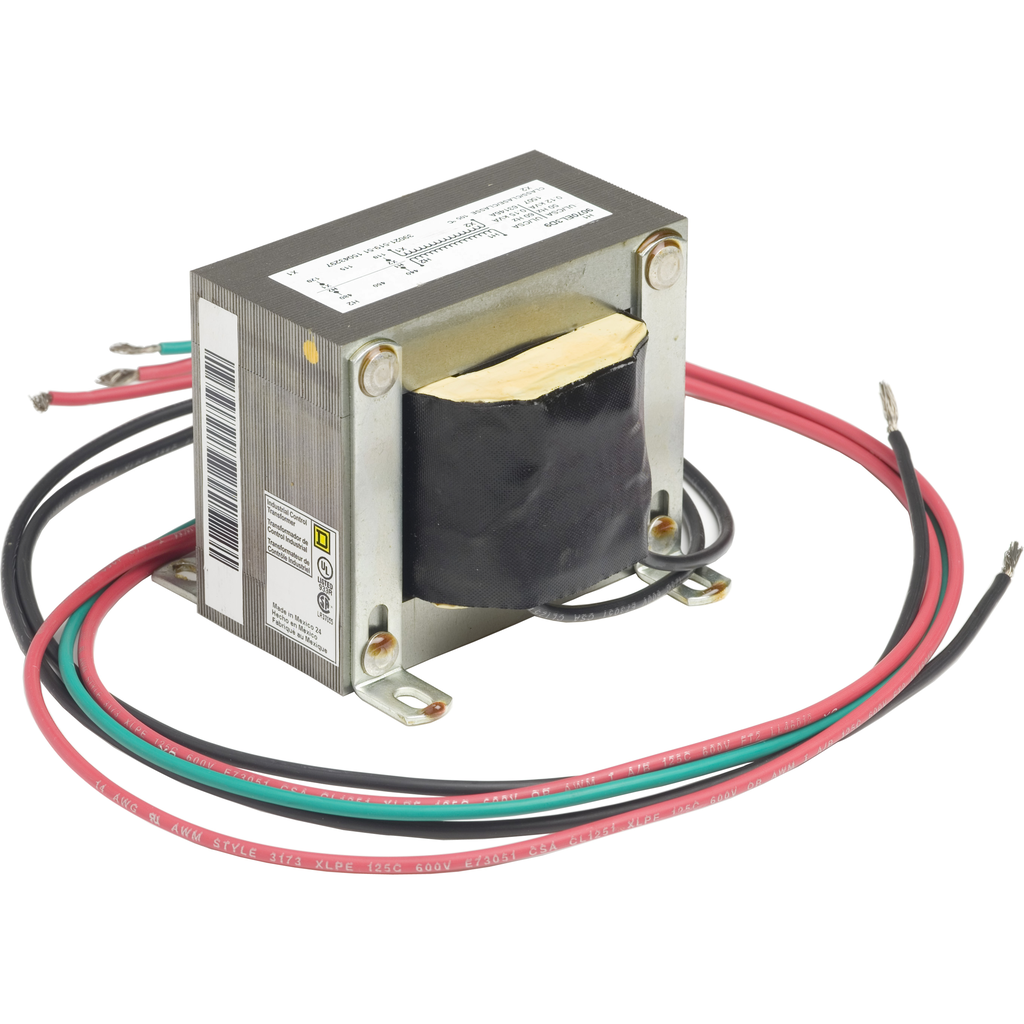

Transformer, Type EL, industrial control, 150VA, 1 phase, 480V primary, 120V secondary, 55C rise
Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. This Industrial Control transformer, is 1 phase, with a rated voltage of 100 VA. This transformer, has primary voltages of 480/460/440 V and secondary voltages of 110/115/120 V. This product has a temperature rise of 55 °C and a insulated temperautre of 105 °C. This product complys to UL listed, CSA & CE standards. This product comes with a 610 m lead and has screw clamp terminals connections.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 105 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Primary Voltage |
|
| Secondary Voltage |
|
| Temperature Rise | 55 °C |
| Connector Type | lead 610 m |
| Phase | 1 phase |
| Rated Power In Va | 150 VA |
| Electrical Connection | screw clamp terminals |
| Country of Origin | Mexico |
| Range Of Product | EL |
| Product Or Component Type | Industrial Control Transformer |
