9070EL3D3

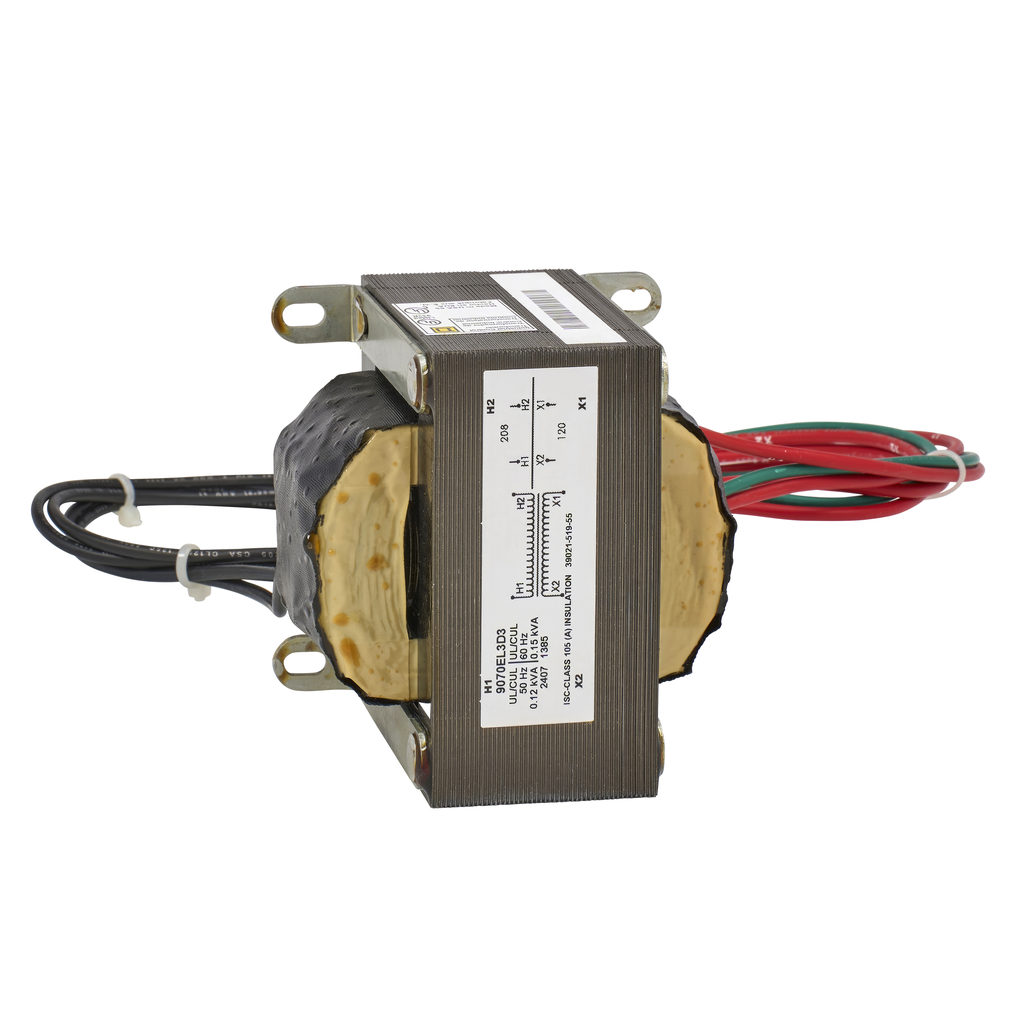

Transformer, Type EL, industrial control, 150VA, 1 phase, 208V primary, 120V secondary, 55C rise
Specifications
| Range Of Product | EL |
|---|---|
| Product Or Component Type | Industrial Control Transformer |
| Warranty | 18 months |
| Primary Voltage | 208 V |
| Secondary Voltage | 120 V |
| Temperature Rise | 55 °C |
| Connector Type | lead 610 m |
| Electrical Connection | screw clamp terminals |
| Phase | 1 phase |
| Rated Power In Va | 150 VA |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 105 °C |
