Overload Relay, Motor Logic, solid state overload relay, NEMA Size 00, 3 pole, 3A to 9A, 600VAC, separate mount

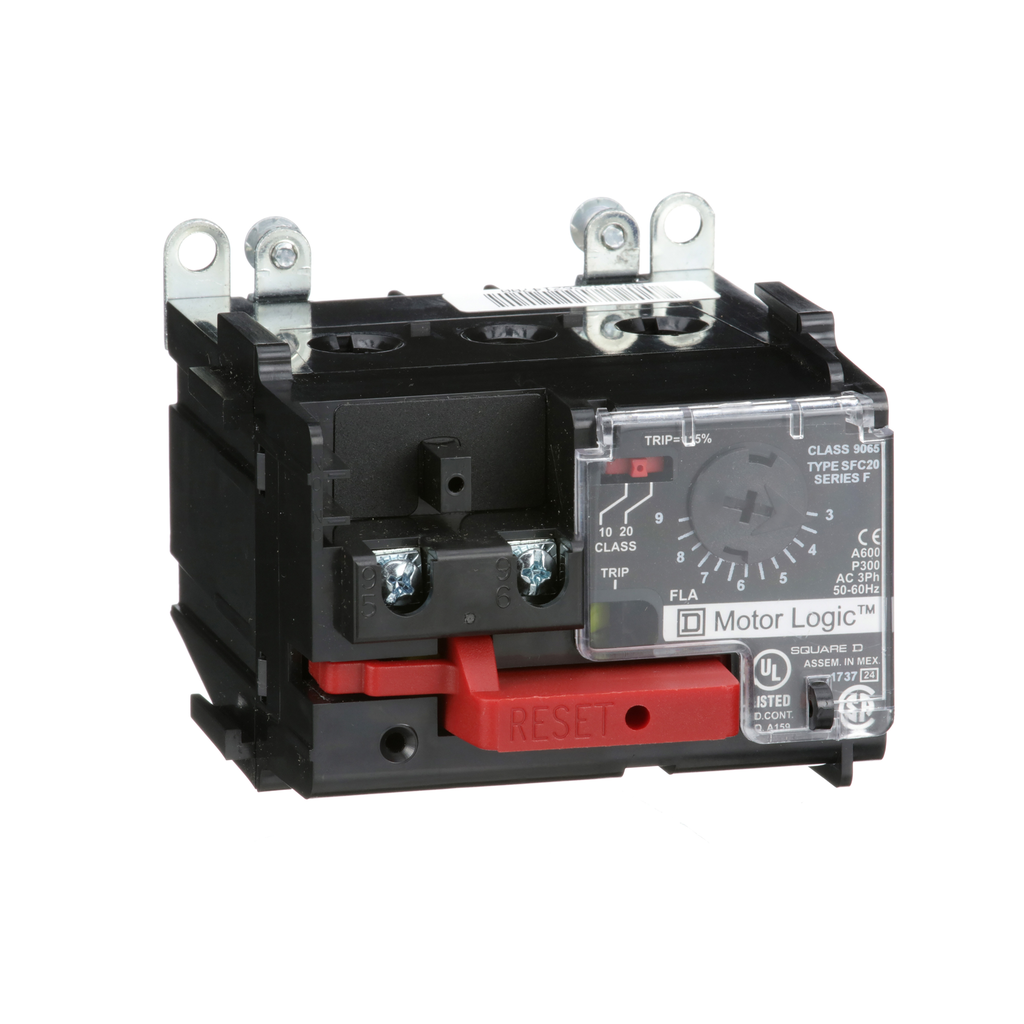

Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This Motor Logic solid state overload relay is for use with NEMA size 00 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 3A to 9A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. Electrical remote reset is available. The visible trip indicator and trip test function make trouble shooting much quicker. This overload relay is 2.69 inches tall, 3.26 inches wide and 3.90 inches deep. Relay weighs 1.21 lbs. Motor Logic SSOLR are UL listed and CSA certified. Separate mount overload relays are UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 68.3 mm |
|---|---|
| Nema Size | 00 |
| Mounting Support | mounting plate |
| Phase | 3 phase |
| Net Weight | 0.55 kg |
| Width | 82.8 mm |
| Depth | 99.1 mm |
| [Ue] Rated Operational Voltage | 600 V AC |
| Country of Origin | Mexico |
| Width | 82.8 mm |
| Height | 68.3 mm |
| Weight | 0.55 kg |
| Thermal Overload Type | solid state |
| Range Of Product | Motor Logic |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312002EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1312002EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Warranty | 18 months |
