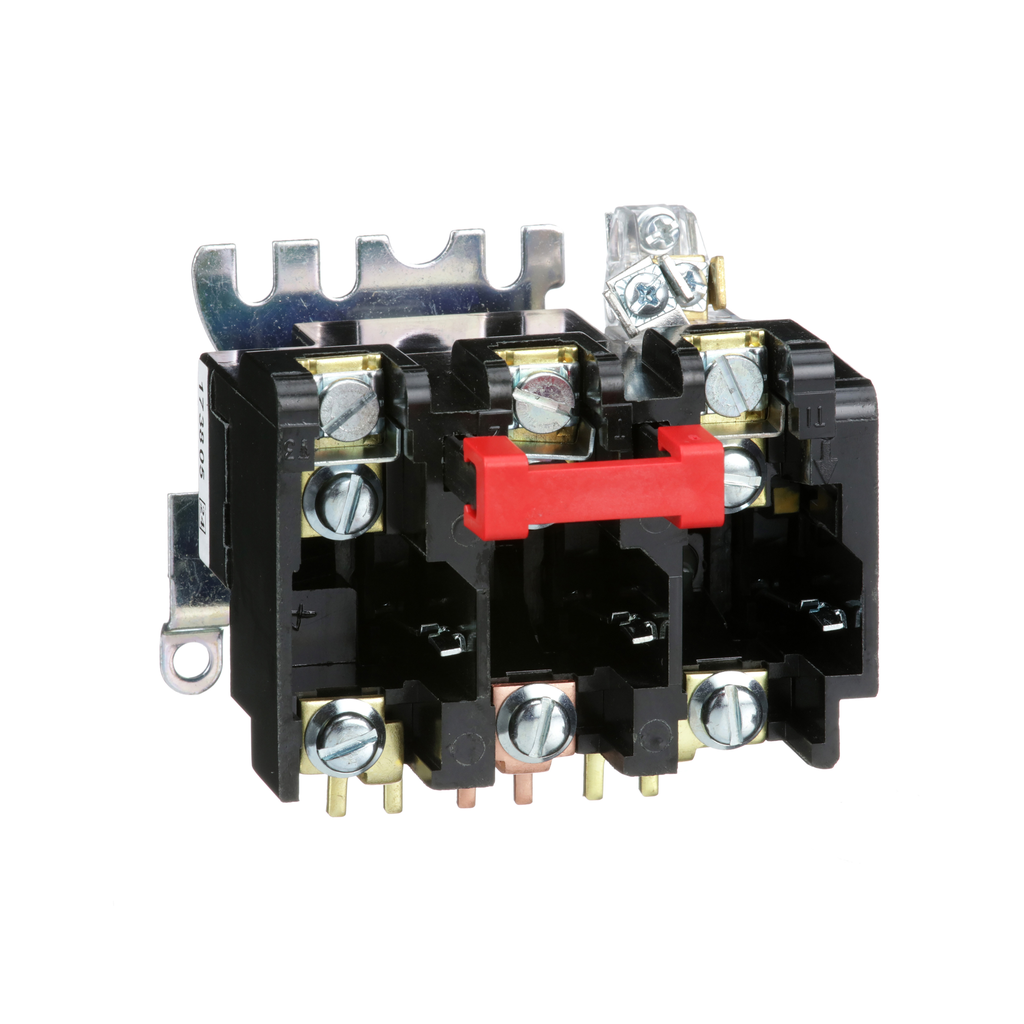

Overload Relay, Type S, melting alloy, replacement overload, NEMA sizes 00, 0, 1, 3 to 5 pole, 27A, 600VAC
Square D thermal overload relays provide motor overcurrent protection. The exclusive one piece melting alloy thermal unit is used in these relays to provide protection against overheating of the motor winding insulation due excessive over current. The melting alloy thermal unit to be used is determined by the full load current of the motor to be controlled, number of phases and the enclosure size. When 3 thermal units are properly installed the relay can be reset. Overload relay has a trip free reset mechanism. The output contact is replaceable. Maximum voltage rating of 600 V. Overload relay has a trip free reset mechanism. Relay has a maximum voltage rating of 600 VAC. This overload relay is 4.00 inches tall, 3.50 inches wide and 3.97 inches deep.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Thermal Overload Type | melting alloy |
|---|---|
| Product Destination | starter |
| Range Of Product | Replacement Relay |
| Warranty | 18 months |
| Height | 101.6 mm |
| Nema Size |
|
| Number Of Thermal Units Required | 3 |
| Mounting Support | mounting plate |
| Width | 88.9 mm |
| Depth | 100.8 mm |
| Phase | 3 phase |
| [Ue] Rated Operational Voltage | 600 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
