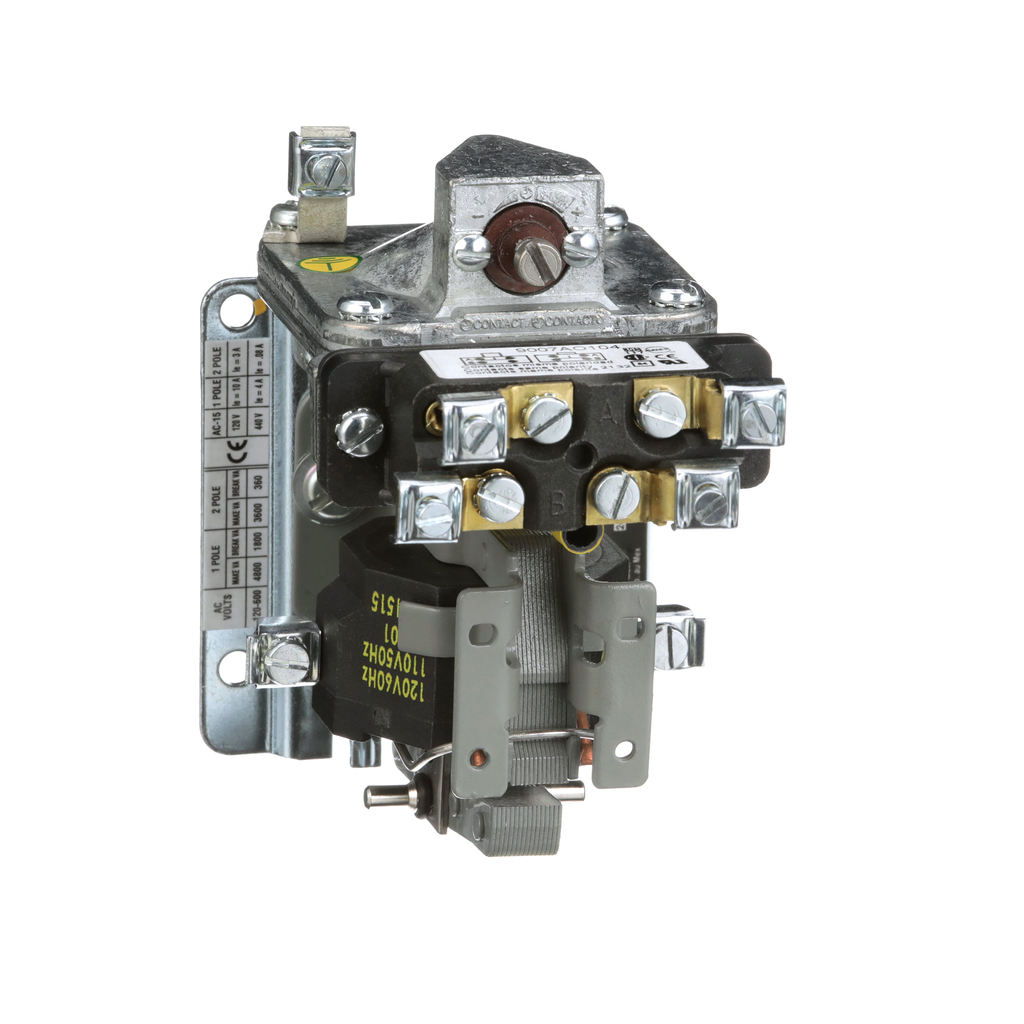

9050AO10DV02
Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open
9050A pneumatic timing relays are designed for very rugged conditions. The timing range of this off delay timer is typically about one minute. This timing relay can be converted by a customer from off delay to on delay. The replacement snap switch for this timing relay is a 9007AO104. The contacts have a 15A resistive rating at 600 VAC. The coil can be replaced. This timing relay has a 110/120 VAC 50/60 Hz coil. This product is not enclosed in an enclosure. 9050A pneumatic timing relays are UL listed and CSA certified. 9050A pneumatic timing relays are UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Contact Operation | time delayed 1 NO + 1 NC |
|---|---|
| [Uc] Control Circuit Voltage |
|
| Time Delay Range | 0.1 s...1 min |
| Range Of Product | 9050A/H |
| Line Rated Current | 15 A |
| Switch Function | SPDT |
| Product Or Component Type | timer |
| Time Delay Type | off-delay |
| Warranty | 18 months |
| Reset Response Time |
|
| Mounting Support | panel |
| Electrical Connection | screw-clamp terminals |
| Maximum Switching Voltage | 600 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 68-104 °F |
| Height | 67 mm |
| Width | 102 mm |
| Depth | 111 mm |
