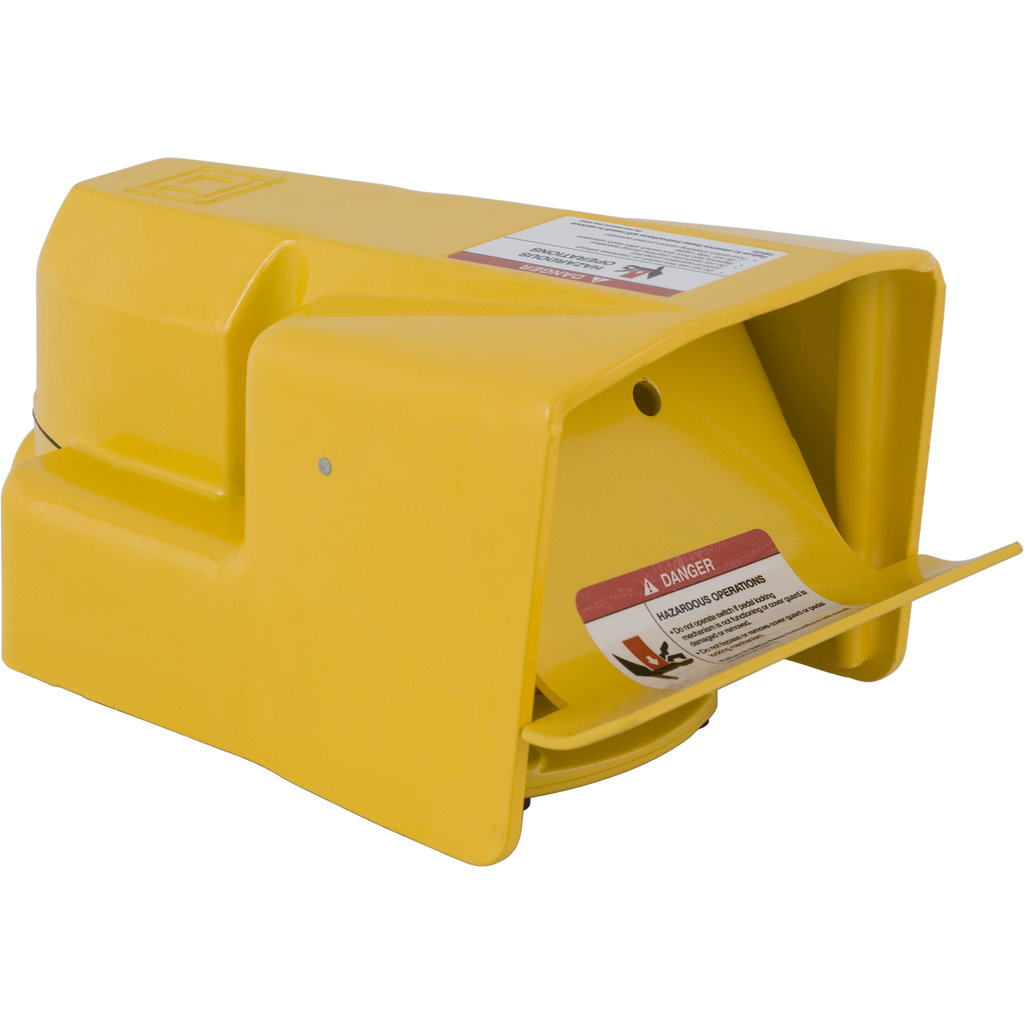

Foot Switch, Harmony 9002AW, industrial, oversized pedal and side shields, DPDT contact, with safety door, 10A at 600V AC
9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has an oversized pedal shield, side shields and a safety door. The two pole double throw snap switch used for this foot switch contact is rated at 0.6A resistive at 600 VAC. For other contact ratings, refer to the catalog. The double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is 6.26 inches tall, 6.40 inches wide and 8.56 inches deep. Foot switch is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121009EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | United States |
| Product Certifications |
|
| Height | 159 mm |
| Range Of Product | 9002AW |
| Type Of Operator | spring return |
| Product Or Component Type | foot switch |
| Nema Degree Of Protection | NEMA 2/4/13 |
| Contact Operation | 1 step |
| Switch Function | DPDT |
| Cable Entry | 0.75 inch NPT conduit entrance |
| Width | 163 mm |
| Depth | 217 mm |
| Device Composition |
|
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Warranty | 18 months |
