Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC

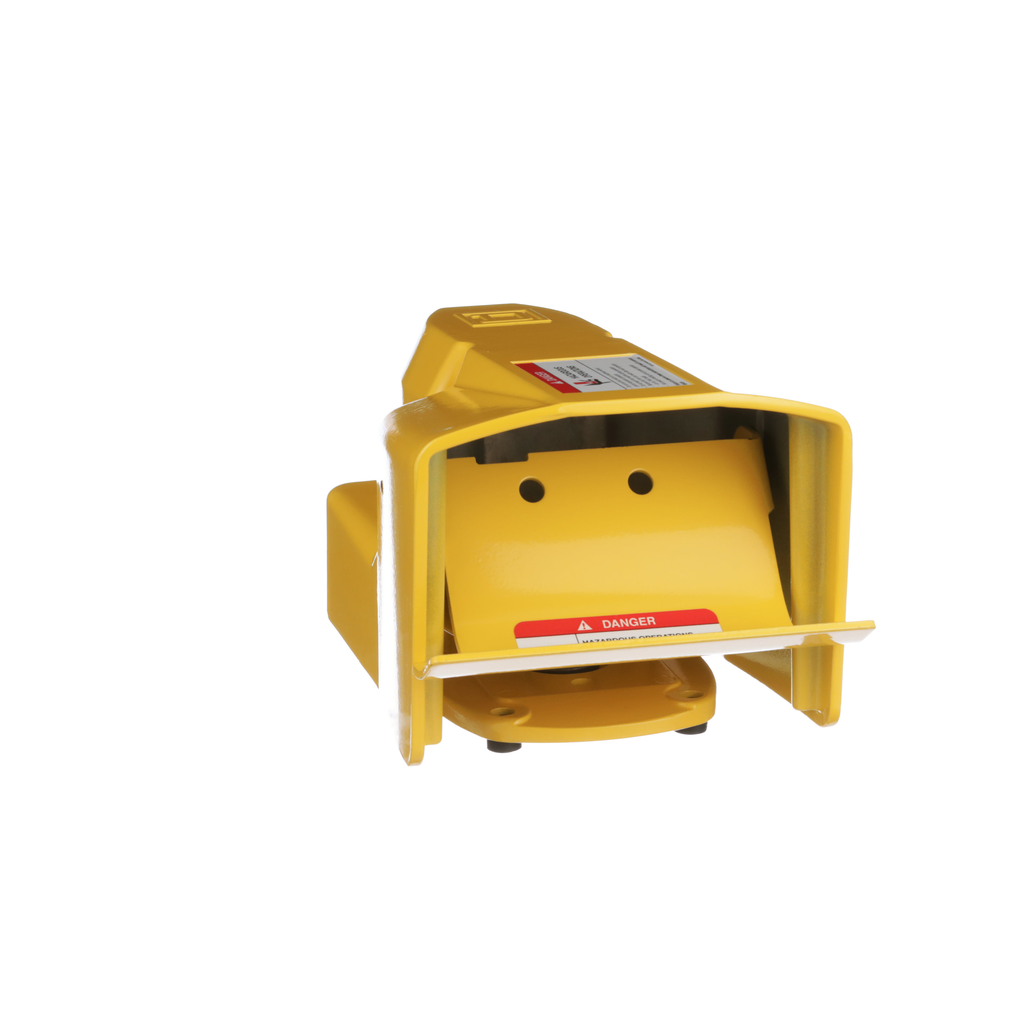

9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has an oversized pedal shield, side shields and a safety door. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified. Foot switch is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Height | 159 mm |
| Nema Degree Of Protection | NEMA 2/4/13 |
| Range Of Product | 9002AW |
| Contact Operation | 1 step |
| Switch Function | SPDT |
| Type Of Operator | spring return |
| Cable Entry | 0.75 inch NPT conduit entrance |
| Product Or Component Type | foot switch |
| Width | 163 mm |
| Depth | 217 mm |
| Device Composition |
|
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Warranty | 18 months |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121009EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
