9001SKT38LGG9

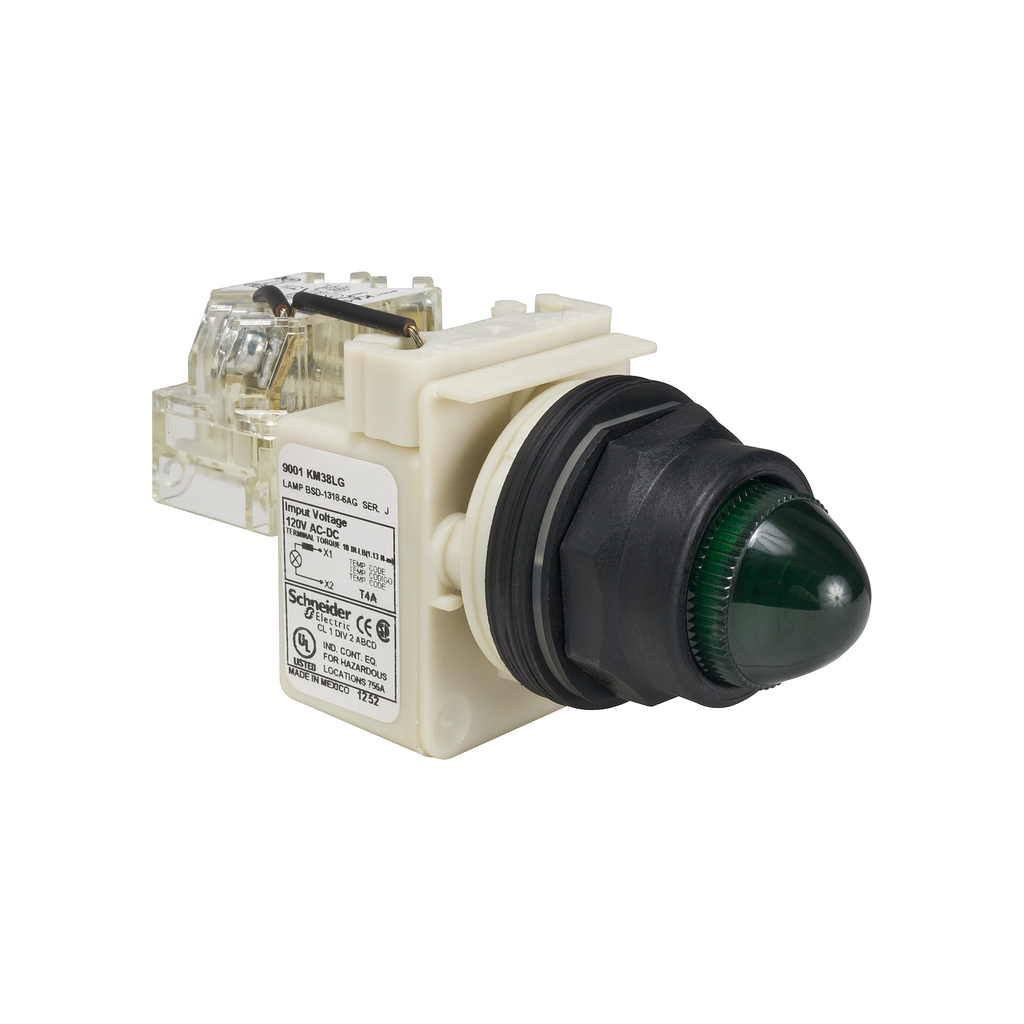

Push-to-test pilot light, Harmony 9001SK, plastic, polycarbonate, domed, green, 30mm, LED green, 120V
This illuminated green push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ip Degree Of Protection | IP66 |
|---|---|
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 120 V |
| Lens Material | polycarbonate |
| Mounting Diameter | 30 mm |
| Operating Mode | push-to-test |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | green |
| Size | 30 mm |
| Lens Type | domed |
| Contacts Type And Composition | 1 C/O |
| Light Source | Green LED |
| Bezel Material | plastic |
| Light Source Colour | green |
| Bulb Base | BA 9s |
| Country of Origin | Mexico |
| Range Of Product | Harmony 9001SK |
| Light Block Supply | direct 120 V |
| Product Or Component Type | push-to-test pilot light |
| Lens Type | domed plastic |
