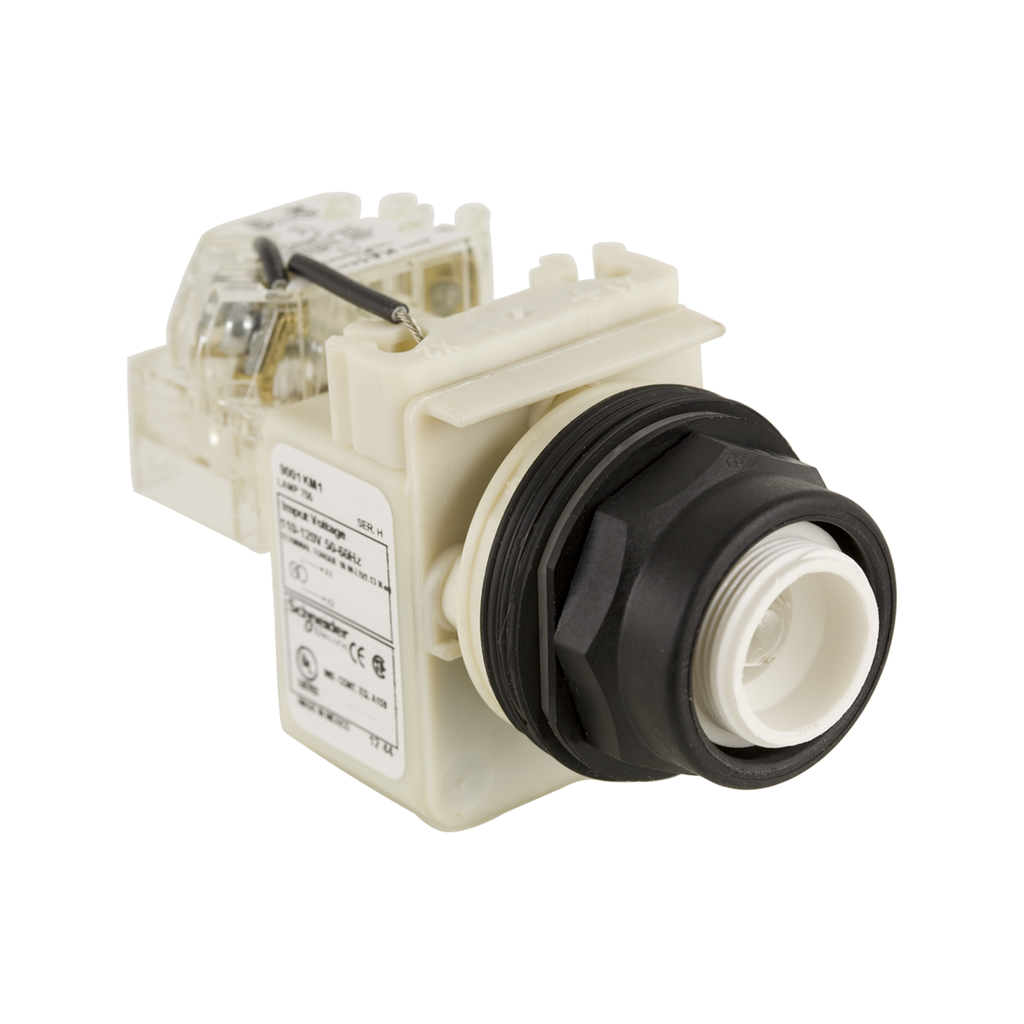

Push-to-test pilot light head, Harmony 9001SK, plastic, without cap, 30mm, 110...120V
This pilot light is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel and is delivered with push to test operator. It is supplied via internal transformer with 110V to 120V AC. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ip Degree Of Protection | IP66 |
|---|---|
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 110...120 V |
| Light Source | incandescent bulb |
| Mounting Diameter | 30 mm |
| Light Block Supply | via integral transformer |
| Operating Mode | push-to-test |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | without cap |
| Size | 30 mm |
| Contacts Type And Composition | 1 C/O |
| Bezel Material | plastic |
| Supply Frequency | 50...60 Hz |
| Bulb Base | BA 9s |
| Country of Origin | Mexico |
| Range Of Product | Harmony 9001SK |
| Light Block Supply |
|
| Product Or Component Type | head for push-to-test pilot light |
