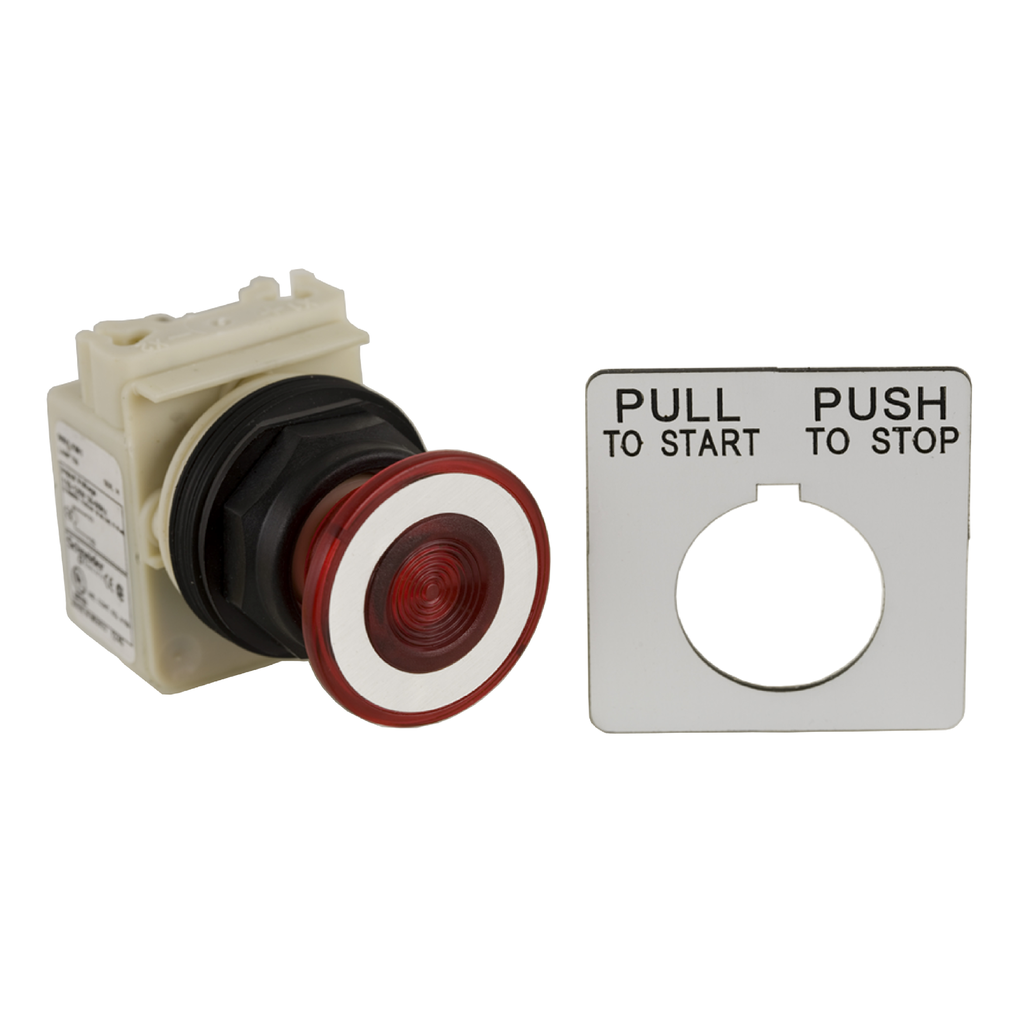

Illuminated push-button, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 24-28V, 1 C/O
This mushroom shaped illuminated push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance due to a prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards |
|
|---|---|
| Ip Degree Of Protection | IP66 |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 24...28 V |
| Light Source | LED |
| Mounting Diameter | 30 mm |
| Operator Profile | mushroom Ø 41 mm |
| Cap/Operator Or Lens Colour | red |
| Size | 30 mm |
| Device Presentation | complete product |
| Contacts Type And Composition | 1 C/O |
| Bezel Material | plastic |
| Contact Operation | standard |
| Light Source Colour | red |
| Operator Position Information | 2 positions |
| Mechanical Durability | 5000000 cycles |
| Type Of Operator | push-pull |
| Bulb Base | BA 9s |
| Country of Origin | Mexico |
| Operator Additional Information | screw-on plastic |
| Range Of Product | Harmony 9001SK |
| Product Or Component Type | illuminated push-button |
| Device Short Name | 9001SK |
