9001SKR9P35LRR

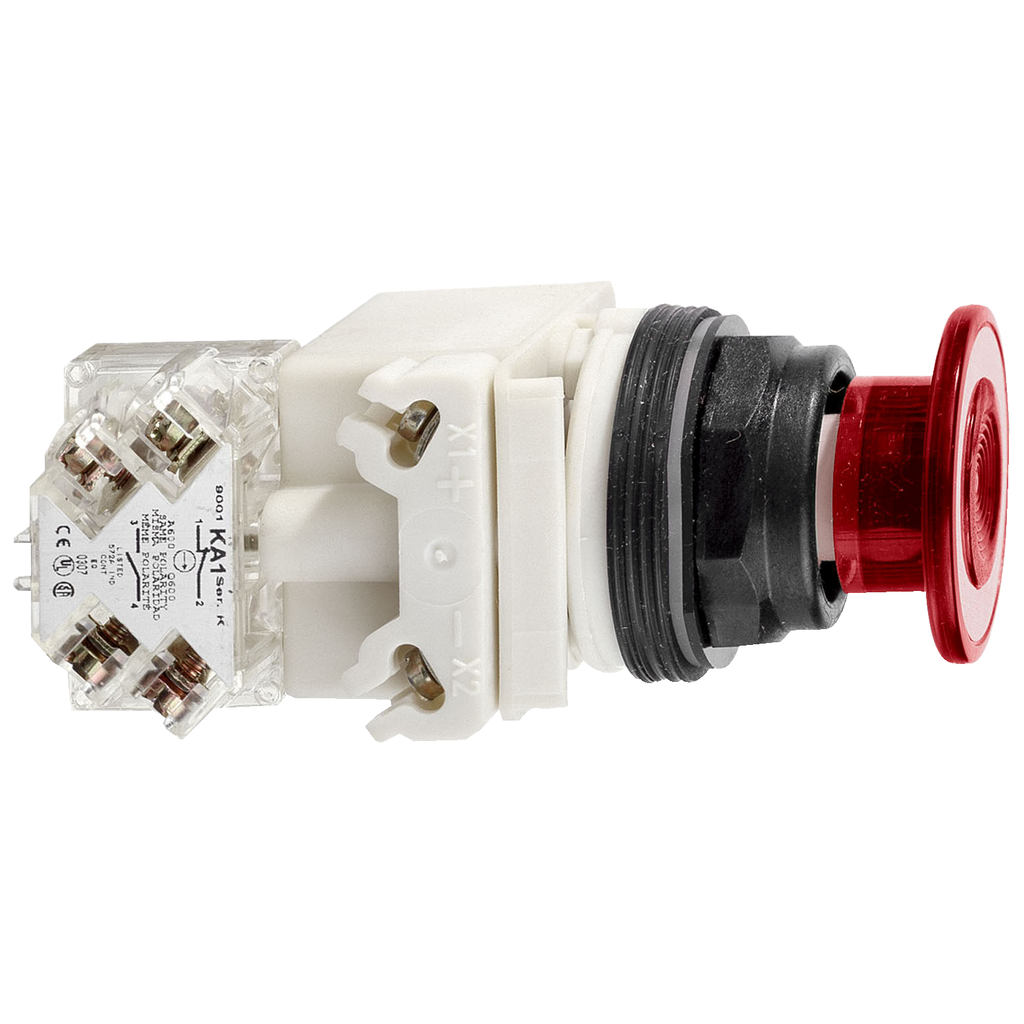

Illuminated push-button head, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 24-28V
This mushroom shaped push-button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Operator Additional Information | screw-on plastic |
| Mounting Diameter | 30 mm |
| Operator Profile | mushroom Ø 41 mm |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | red |
| Net Weight | 0.226 kg |
| Size | 30 mm |
| Contacts Type And Composition | without contact block |
| Light Source | incandescent |
| Bezel Material | plastic |
| Light Source Colour | red |
| Operator Position Information | 2 positions |
| Mechanical Durability | 5000000 cycles |
| Type Of Operator | push-pull |
| Operating Position | any position |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Bulb Base | BA 9s |
| Country of Origin | Mexico |
| Weight | 0.226 kg |
| Range Of Product | Harmony 9001SK |
| Light Block Supply | direct |
| Type Of Operator | stay put |
| Product Or Component Type | head for illuminated push-button |
| Operator Profile | red mushroom Ø 41 mm, unmarked |
| Device Short Name | 9001SK |
