9001SKR9

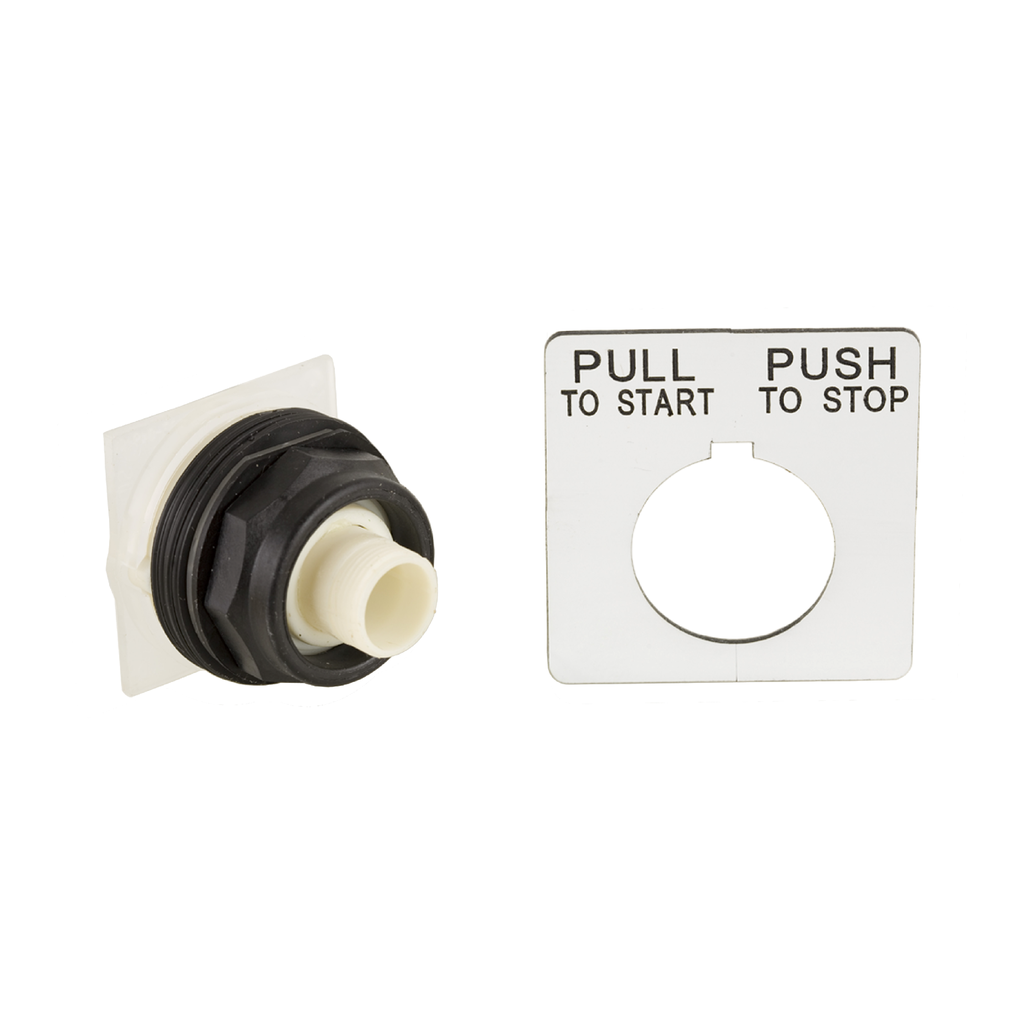

Push button head, Harmony 9001SK, plastic, without mushroom, 30mm, 2 positions, push-pull
This head for push-button is a separate component of the range of control and signaling units, Harmony 9001SK diameter 30mm. It has a double insulated bezel. It is supplied without knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It features push pull operation. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Light Block Supply | without supply |
| Mounting Diameter | 30 mm |
| Shape Of Signaling Unit Head | octagonal |
| Cap/Operator Or Lens Colour | without mushroom |
| Size | 30 mm |
| Ip Degree Of Protection | IP64 |
| Contacts Type And Composition | without contact block |
| Light Source | without |
| Bezel Material | plastic |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Operator Position Information | 2 positions |
| Type Of Operator | push-pull |
| Country of Origin | Mexico |
| Range Of Product | Harmony 9001SK |
| Product Or Component Type | head for push-button |
| Device Short Name | 9001SK |
| Warranty | 18 months |
Documents
- O-Z/Gedney Contact Block Adapter Plate 90014SCX Installation Instructions - 65158-024-01_01 (pdf)
- 9001K Momentary/Maintained, Push-Pull, Operator Installation Sheet - 30072-100-26 (pdf)
- Harmony 9001K/9001SK 30mm Push Buttons Brochure - 9001BR1001_30mmPushButtons (pdf)
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
- Push Buttons: Section 19 - Digest 179 (2024) - Push-Buttons-Digest-Catalog-0100CT2401-SEC-19 (pdf)
