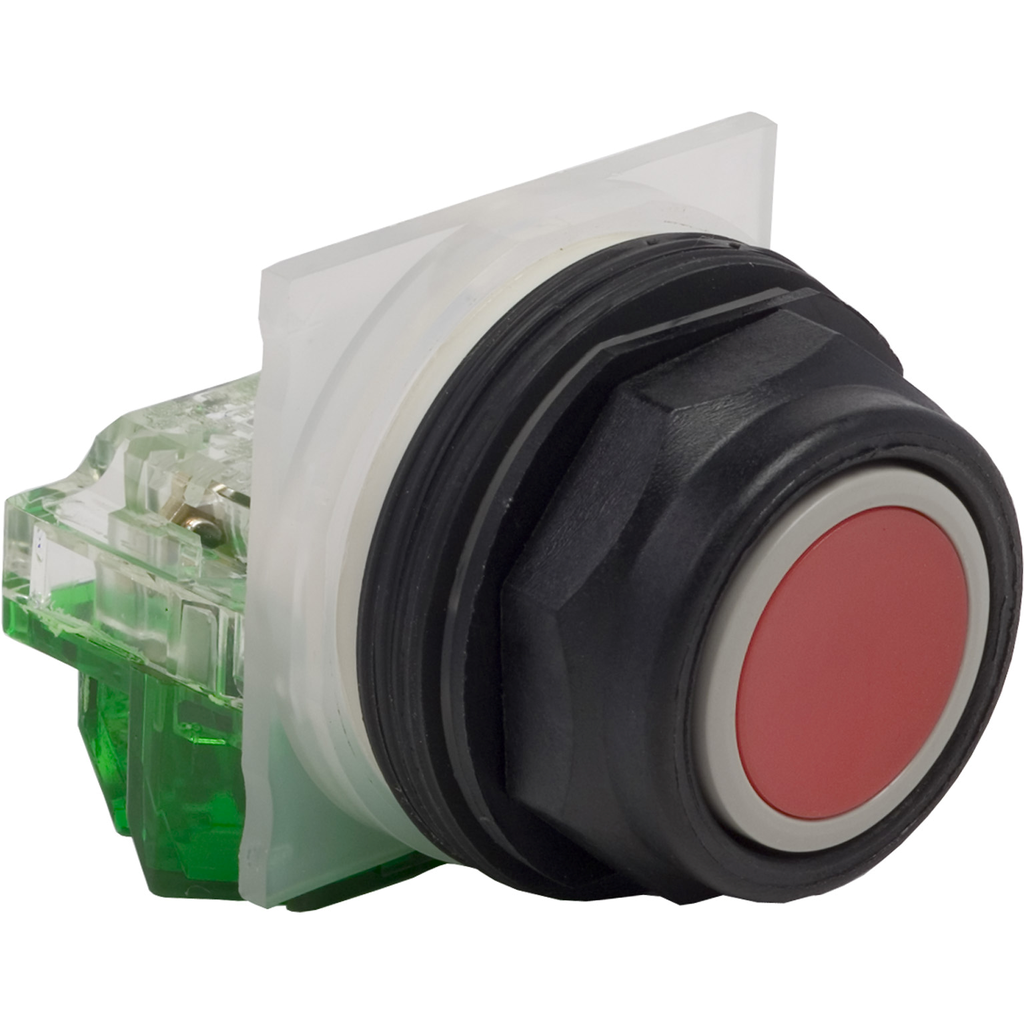

Push-button, Harmony 9001SK, plastic, flush, red, 30mm, spring return, 1 NO
This Harmony 9001SK, modular flush red push button with full guard has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NO contact. This flush push button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards |
|
|---|---|
| Ip Degree Of Protection | IP66 |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mounting Diameter | 30 mm |
| Operator Profile | flush |
| Cap/Operator Or Lens Colour | red |
| Size | 30 mm |
| Device Presentation | complete product |
| Contacts Type And Composition | 1 NO |
| Bezel Material | plastic |
| Contact Operation | standard |
| Mechanical Durability | 5000000 cycles |
| Type Of Operator | spring return |
| Country of Origin | United States |
| Operator Additional Information | plastic guard |
| Range Of Product | Harmony 9001SK |
| Type Of Operator | spring return |
| Product Or Component Type | push-button |
| Operator Profile | red flush |
| Device Short Name | 9001SK |
Documents
- Momentary, Non-Illuminated Mushroom Button Operators Installation Instructions - 30072-100-06_03 (pdf)
- Harmony 9001K/9001SK 30mm Push Buttons Brochure - 9001BR1001_30mmPushButtons (pdf)
- Control and signaling product selection e-guide Brochure - 998-21161425_GMA-US_Control+and+Signaling_e-guide (pdf)
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Push Buttons: Section 19 - Digest 179 (2024) - Push-Buttons-Digest-Catalog-0100CT2401-SEC-19 (pdf)
