9001SKR1RH2

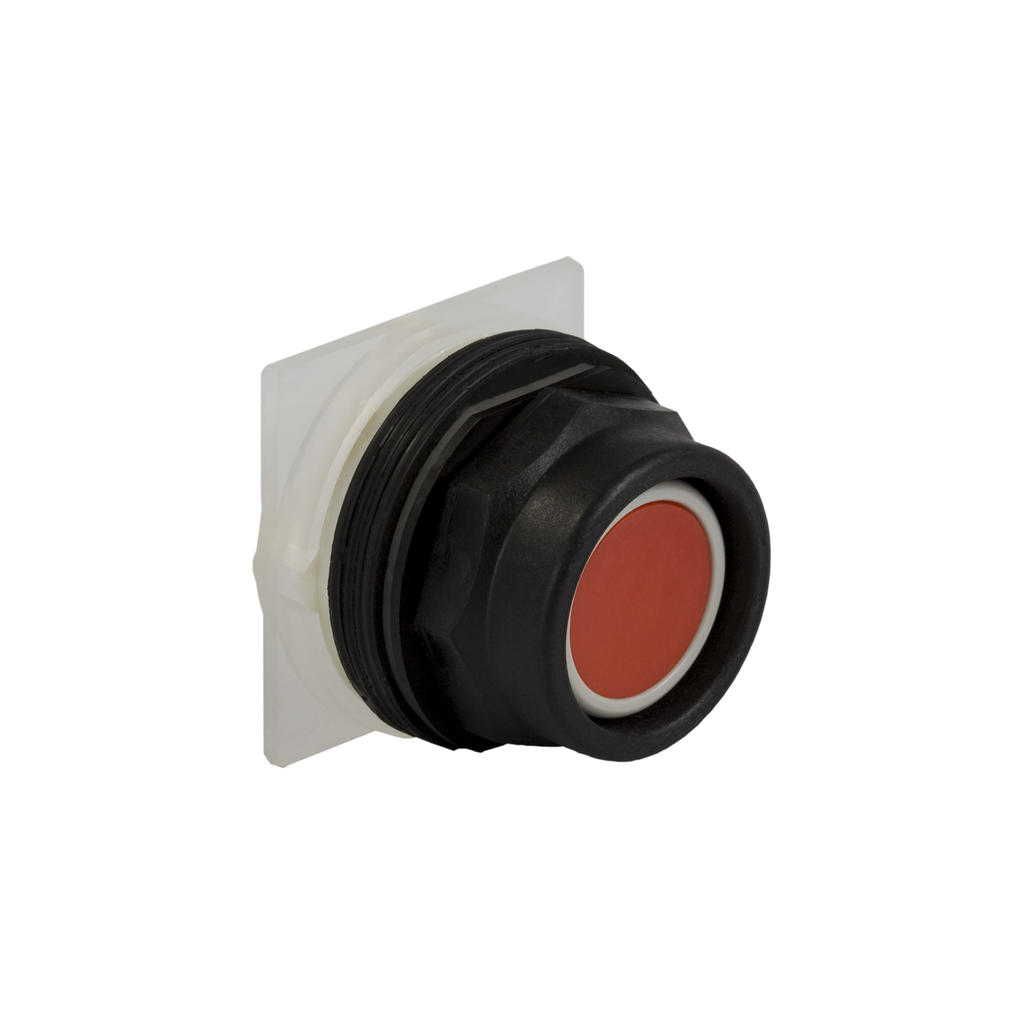

Push button, Harmony 9001SK, plastic, flush, red, 30mm, spring return, 2 C/O
This flush push-button with full guard provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards |
|
|---|---|
| Ip Degree Of Protection | IP66 |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mounting Diameter | 30 mm |
| Operator Profile | flush |
| Cap/Operator Or Lens Colour | red |
| Size | 30 mm |
| Device Presentation | complete product |
| Contacts Type And Composition | 2 C/O |
| Bezel Material | plastic |
| Contact Operation | standard |
| Mechanical Durability | 5000000 cycles |
| Type Of Operator | spring return |
| Country of Origin | Mexico |
| Range Of Product | Harmony 9001SK |
| Product Or Component Type | push-button |
| Device Short Name | 9001SK |
