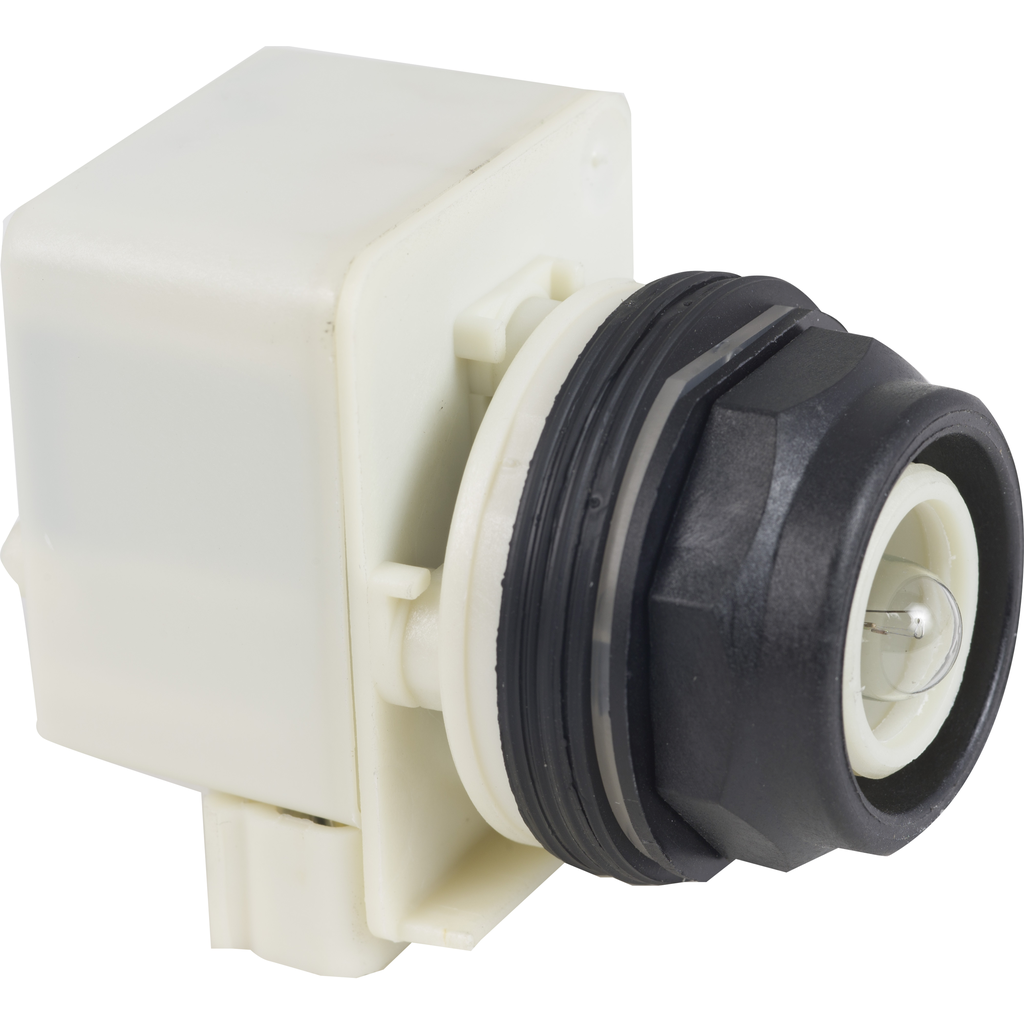

Pilot light head, Harmony 9001SK, plastic, without cap, 30mm, 220-240V
This illuminated pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It works at a rated voltage of 220 to 240 V It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Protective Treatment | TC |
|---|---|
| Ip Degree Of Protection | IP66 |
| Warranty | 18 months |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710019EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710019EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| [Us] Rated Supply Voltage | 220...240 V |
| Bezel Material | plastic |
| Light Source | incandescent bulb |
| Mounting Diameter | 30 mm |
| Light Block Supply | via integral transformer |
| Operating Mode | normal |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | without cap |
| Size | 30 mm |
| Supply Frequency | 50...60 Hz |
| Bulb Base | BA 9s |
| Country of Origin | Mexico |
| Range Of Product | Harmony 9001SK |
| Light Block Supply |
|
| Product Or Component Type | head for pilot light |
