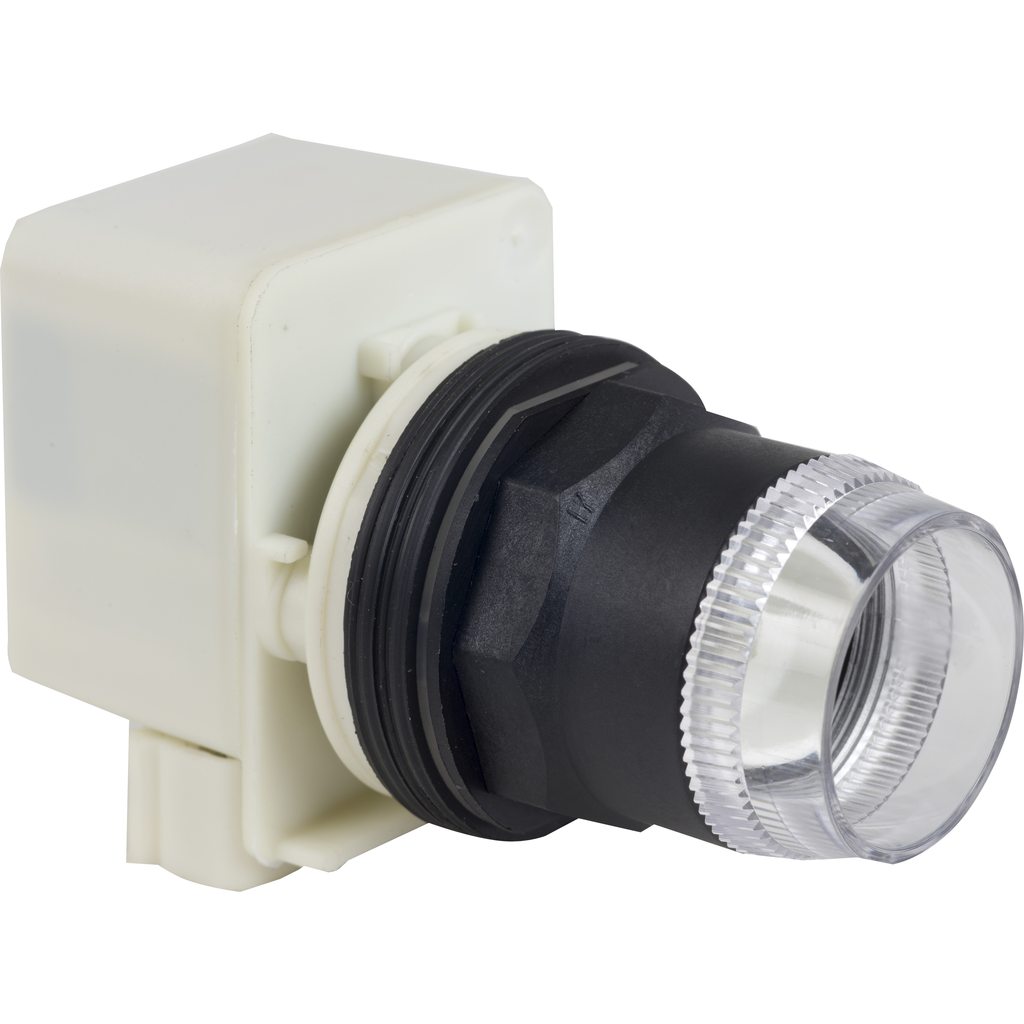

9001SK1L1 - Illuminated push-button head, Harmony 9001SK, plastic, plastic guard flush, without cap, 30mm, spring return, 110-120V

9001SK1L1

Add to Quote Catalogue

Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	Mexico
Range Of Product	Harmony 9001SK
Product Or Component Type	head for illuminated push-button
Device Short Name	9001SK
Product Certifications	CE CSA LR24590 class 3211 03 UL listed file E42259 CCN NKCR
[Us] Rated Supply Voltage	110...120 V
Operator Additional Information	plastic guard
Light Source	incandescent bulb
Mounting Diameter	30 mm
Light Block Supply	via integral transformer
Operator Profile	flush
Shape Of Signaling Unit Head	octagonal
Cap/Operator Or Lens Colour	without cap
Size	30 mm
Ip Degree Of Protection	IP64
Contacts Type And Composition	without contact block
Bezel Material	plastic
Nema Degree Of Protection	NEMA 1/2/3/3R/4/4X/6/12/13
Type Of Operator	spring return
Supply Frequency	50...60 Hz
Bulb Base	BA 9s
Warranty	18 months
