9001KYK33

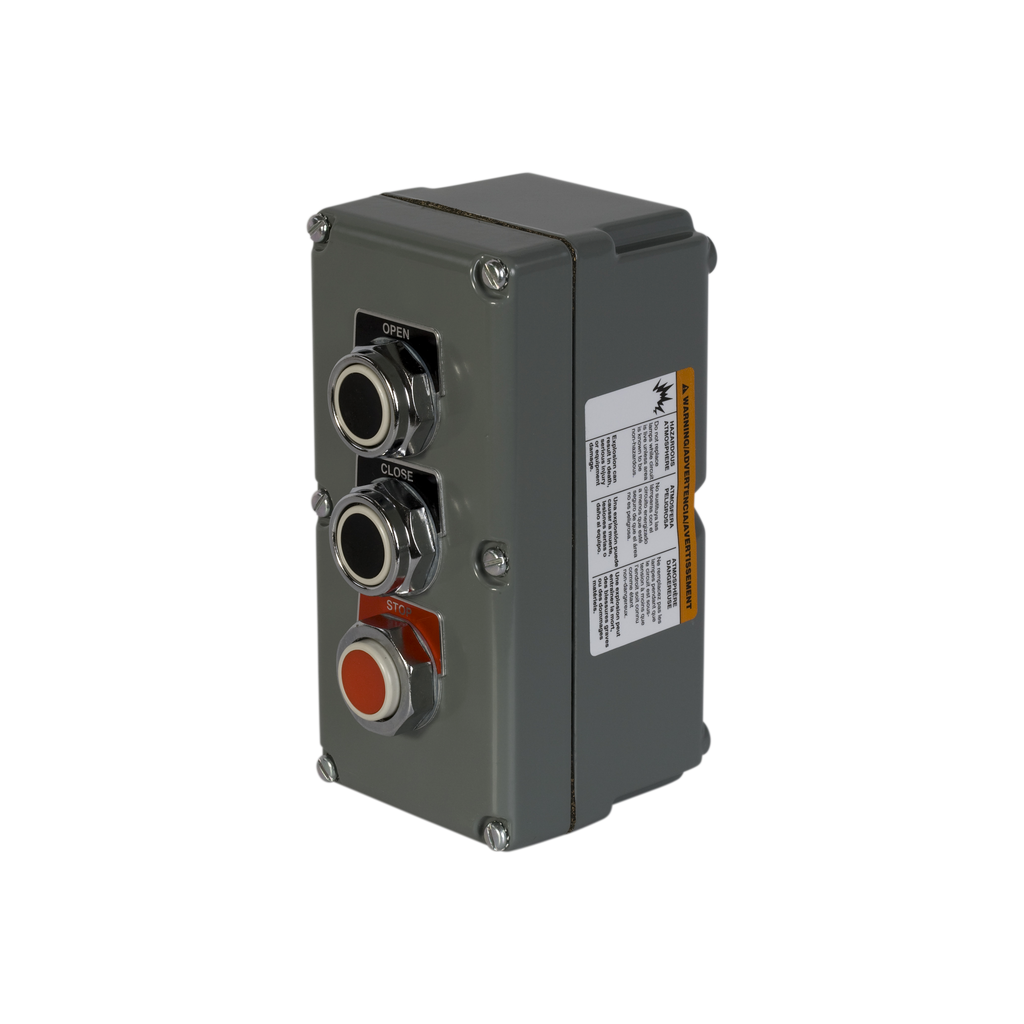

Complete control station, Harmony 9001K, 10A, zinc, grey, 3 push buttons 3NO + 3NC OPEN CLOSE STOP, NEMA 3 4 13
This complete control station with two pushbuttons provides an ergonomic interface for your machines The control station is composed of three push-buttons with 3 NO + 3 NC contacts (Open-Close-Stop), and it is connected to control circuits with classic screw-clamp connections It can be used indoor It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, Type 3, 4 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nema Degree Of Protection | NEMA 3/4/13 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Enclosure/Cubicle Description | surface mounting |
| Connections - Terminals | screw-clamp terminals |
| Control Station Composition | 3 push-buttons 3 NO + 3 NC OPEN-CLOSE-STOP |
| Type Of Installation | indoor/outdoor |
| [Ie] Rated Operational Current Ac | 10 A |
| Enclosure Material | die cast zinc alloy Gray |
| Country of Origin | United States |
| Contact Block Name | KA1 |
| Range Of Product | Harmony 9001K |
| Provided Equipment |
|
| Product Or Component Type | complete control station |
| Device Short Name |
|
