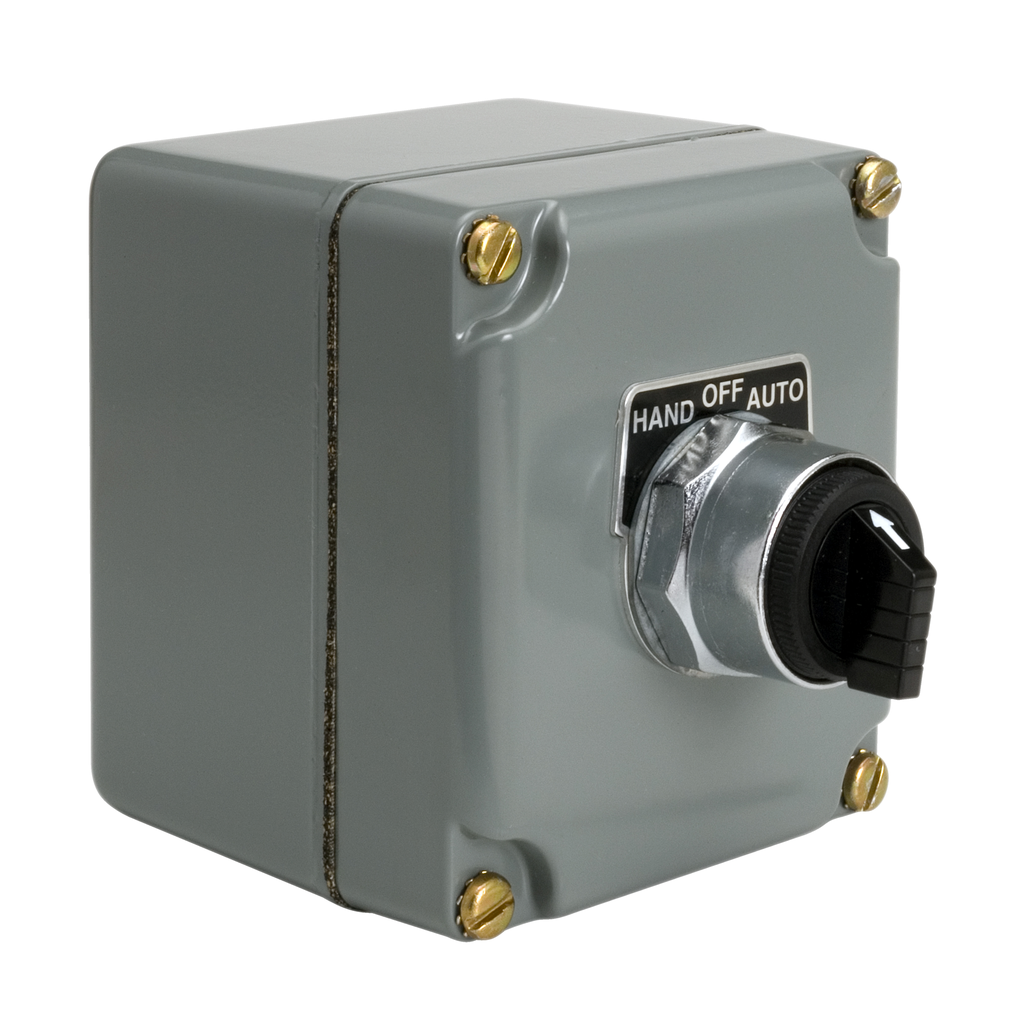

9001KYK111
Complete control station, Harmony 9001K, 10A, zinc, grey, 1 push button 1NO + 1NC HAND OFF AUTO, NEMA 3 4 13
This complete control station with one pushbutton provides an ergonomic interface for your machines It can be used indoor and outdoor It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is connected to control circuits with classic screw-clamp connections High performance International standards & certifications (IP69K, IK03, Type 4X)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nema Degree Of Protection | NEMA 3/4/13 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Enclosure/Cubicle Description | surface mounting |
| Connections - Terminals | screw-clamp terminals |
| Control Station Composition | 1 push-button 1 NO + 1 NC HAND-OFF-AUTO |
| Type Of Installation | indoor/outdoor |
| [Ie] Rated Operational Current Ac | 10 A |
| Enclosure Material | die cast zinc alloy Gray |
| Country of Origin | Mexico |
| Contact Block Name | KA1 |
| Range Of Product | Harmony 9001K |
| Provided Equipment |
|
| Product Or Component Type | complete control station |
| Device Short Name |
|
