9001KY4

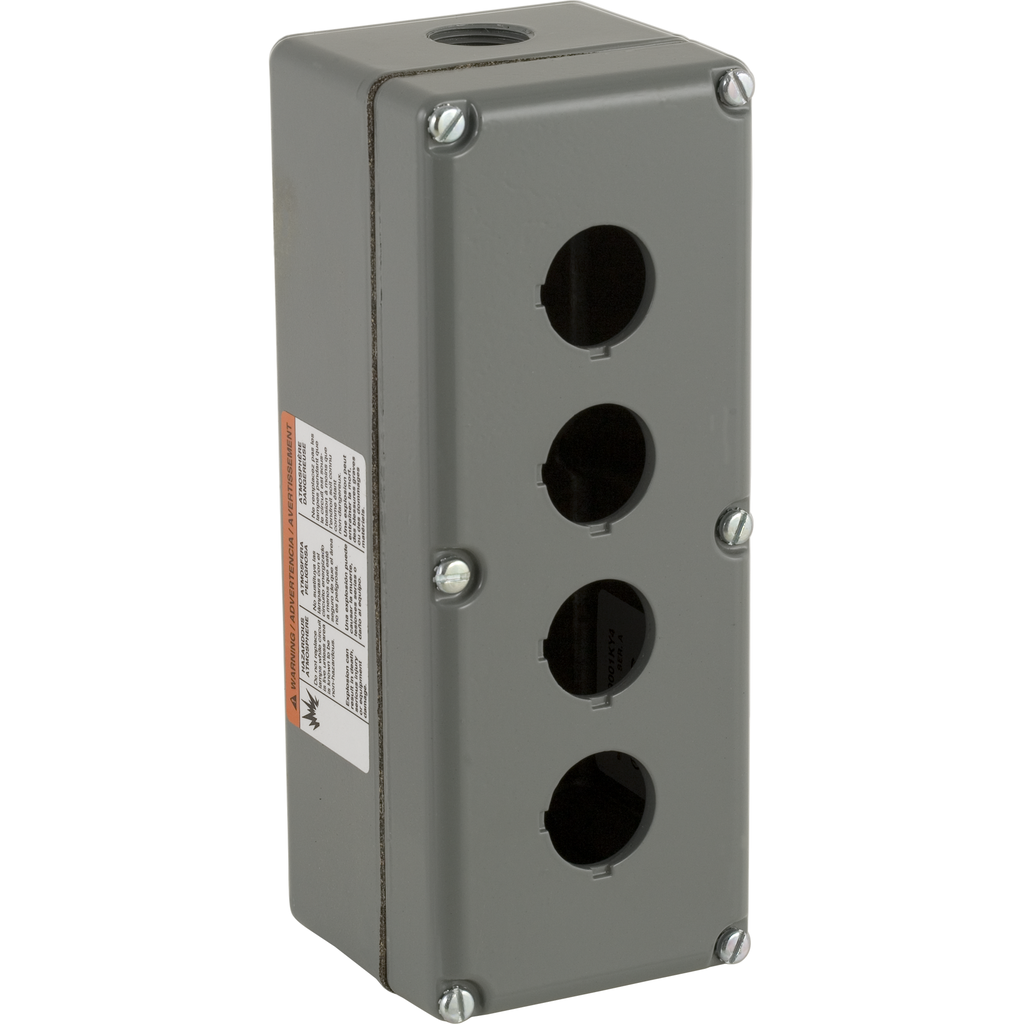

Empty enclosure control station, Harmony 9001K, Harmony 9001SK, aluminium, 4 cut-outs, 30mm
This empty enclosure is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It comprises an aluminium enclosure with 4 vertical opening diameter 30mm. It is supplied with 1 entry tapped for 3/4'' cable gland. It weighs 1.846kg. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Number Of Cut-Out | 4 cut-outs |
|---|---|
| Range Of Product |
|
| Cable Entry | 1 entry tapped for 3/4'' cable gland |
| Product Or Component Type | empty enclosure |
| Device Short Name | 9001K |
| Warranty | 18 months |
| Product Destination | for Ø 30 mm control and signalling units |
| Material | aluminium |
| Net Weight | 1.84 kg |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121027EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | II IEC 61140 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
