9001KT35R31

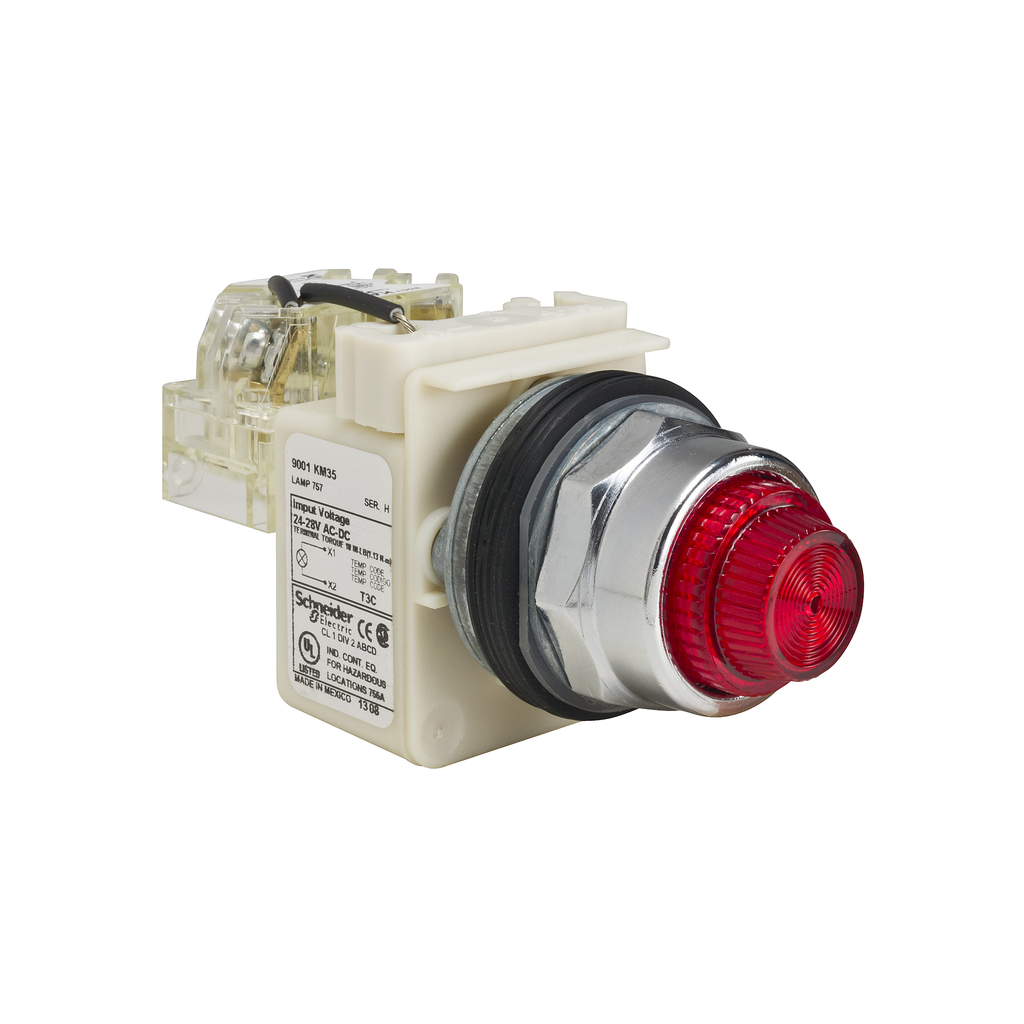

Push to test pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, red, 30mm, 24...28V
This illuminated red push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 24...28 V |
| Lens Material | polycarbonate |
| Light Source | incandescent bulb |
| Mounting Diameter | 30 mm |
| Light Block Supply | full voltage |
| Operating Mode | push-to-test |
| Cap/Operator Or Lens Colour | red |
| Size | 30 mm |
| Contacts Type And Composition | 1 C/O |
| Bezel Material | metal |
| Lens Type | fresnel plastic |
| Shape Of Screw Head | round |
| Bulb Base | BA 9s |
| Country of Origin | Mexico |
| Range Of Product | Harmony 9001K |
| Product Or Component Type | push-to-test pilot light |
| Device Short Name | K |
Documents
- 9001 Heavy Duty Corrosion Resistant Pilot Lights Instruction Sheet - 65013-002-51_04 (pdf)
- Harmony 9001K/9001SK 30mm Push Buttons Brochure - 9001BR1001_30mmPushButtons (pdf)
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Harmony 9001K, SK, KX 30mm Push Buttons Catalog - 9001CT1103 (pdf)
- Push Buttons: Section 19 - Digest 179 (2024) - Push-Buttons-Digest-Catalog-0100CT2401-SEC-19 (pdf)
