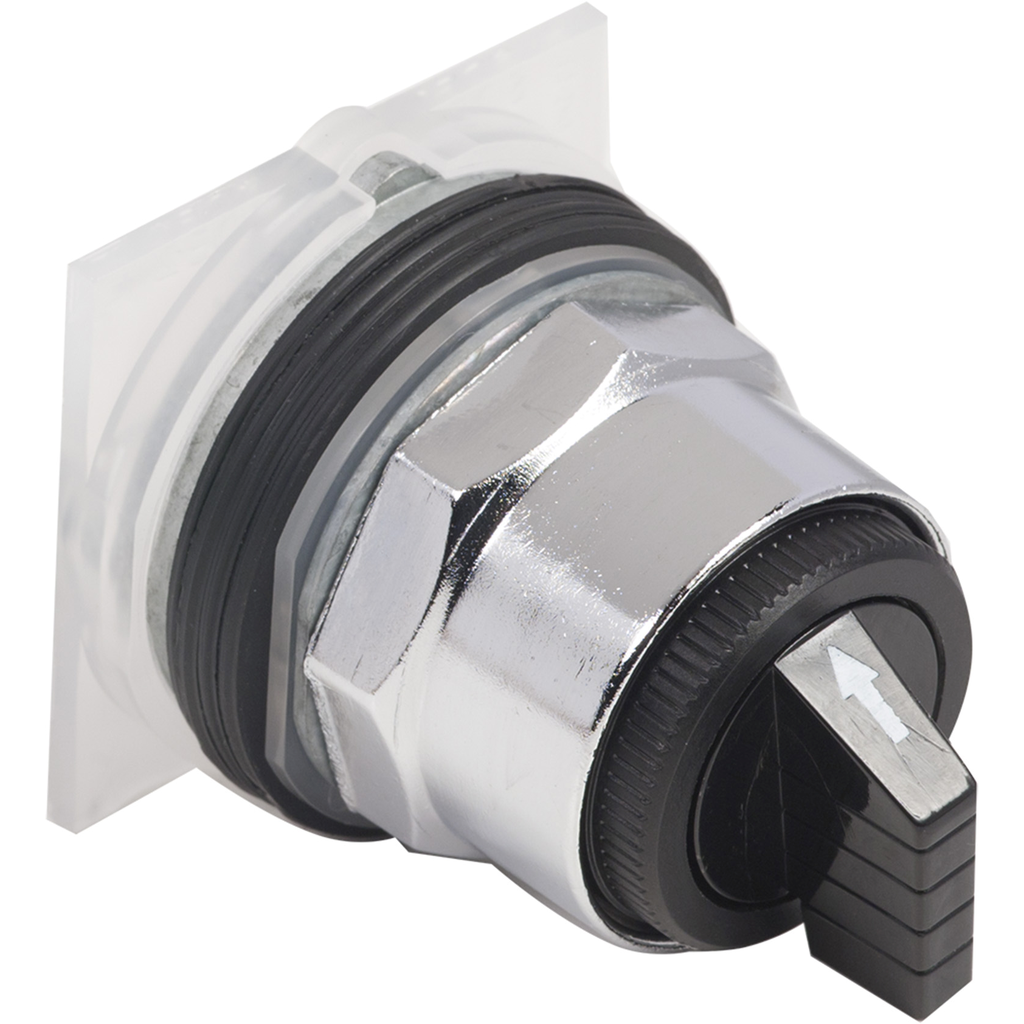

Selector switch head, Harmony 9001K, metal, standard handle, black, 30mm, 3 positions, spring return left to center
This Harmony 9001K, black selector switch with C cam has 3 positions, operates with spring return from left to center position mechanism. It has a chromium-plated metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Cam Profile | 3 |
| Mounting Diameter | 30 mm |
| Operator Profile | standard handle |
| Cap/Operator Or Lens Colour | black |
| Size | 30 mm |
| Device Presentation | basic element |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| Operator Position Information | 3 positions |
| Type Of Operator | spring return |
| Return | left to centre |
| Country of Origin | United States |
| Range Of Product | Harmony 9001K |
| Type Of Operator | spring return |
| Product Or Component Type | head for selector switch |
| Operator Profile | black standard knob |
| Device Short Name | K |
