9001KS62B

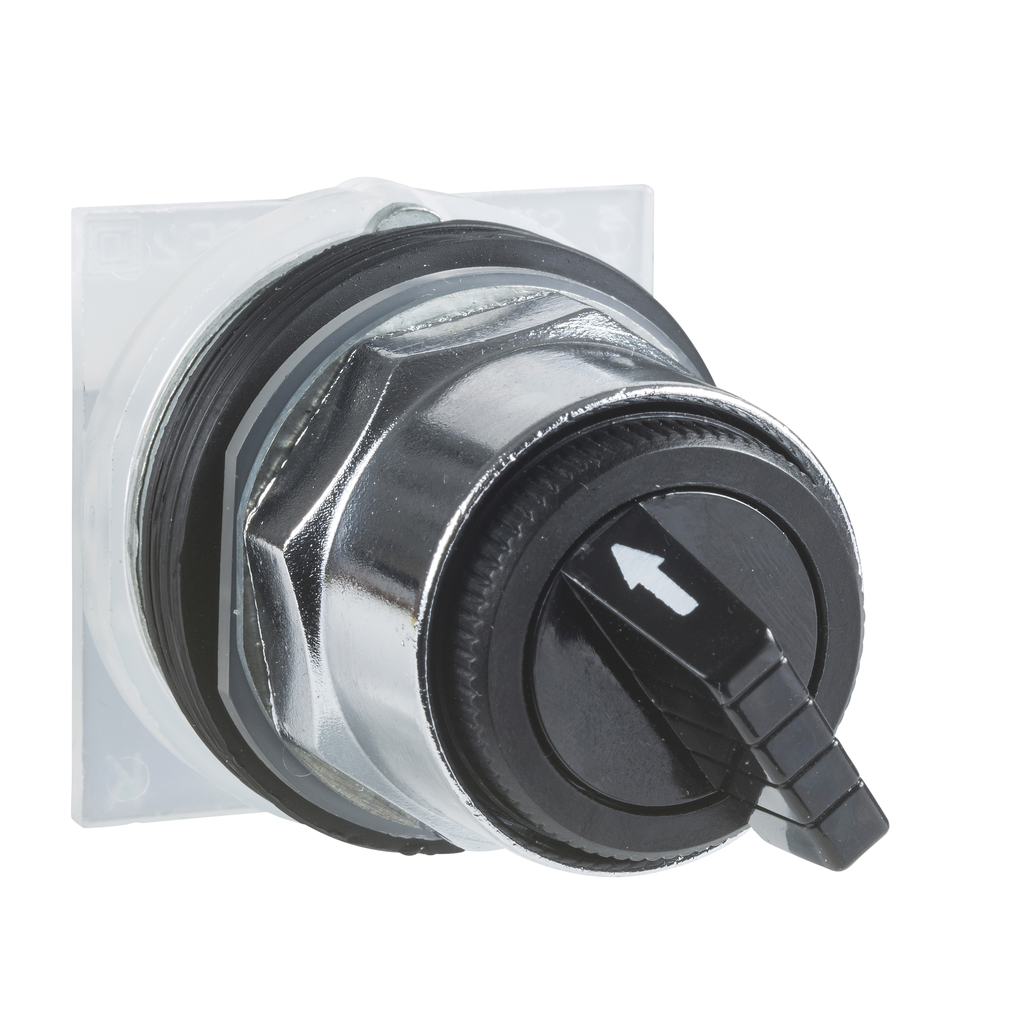

Selector switch head, Harmony 9001K, metal, standard handle, black, 30mm, 3 positions, spring return left to center
Specifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| Cam Profile | 2 |
| Operator Position Information | 3 positions |
| Mounting Diameter | 30 mm |
| Operator Profile | standard handle |
| Type Of Operator | spring return |
| Return | left to centre |
| Cap/Operator Or Lens Colour | black |
| Size | 30 mm |
| Device Presentation | basic element |
| Country of Origin | Mexico |
| Range Of Product | Harmony 9001K |
| Operator Profile | black standard knob |
| Type Of Operator | spring return |
| Product Or Component Type | head for selector switch |
| Device Short Name | K |
