9001KS52K5

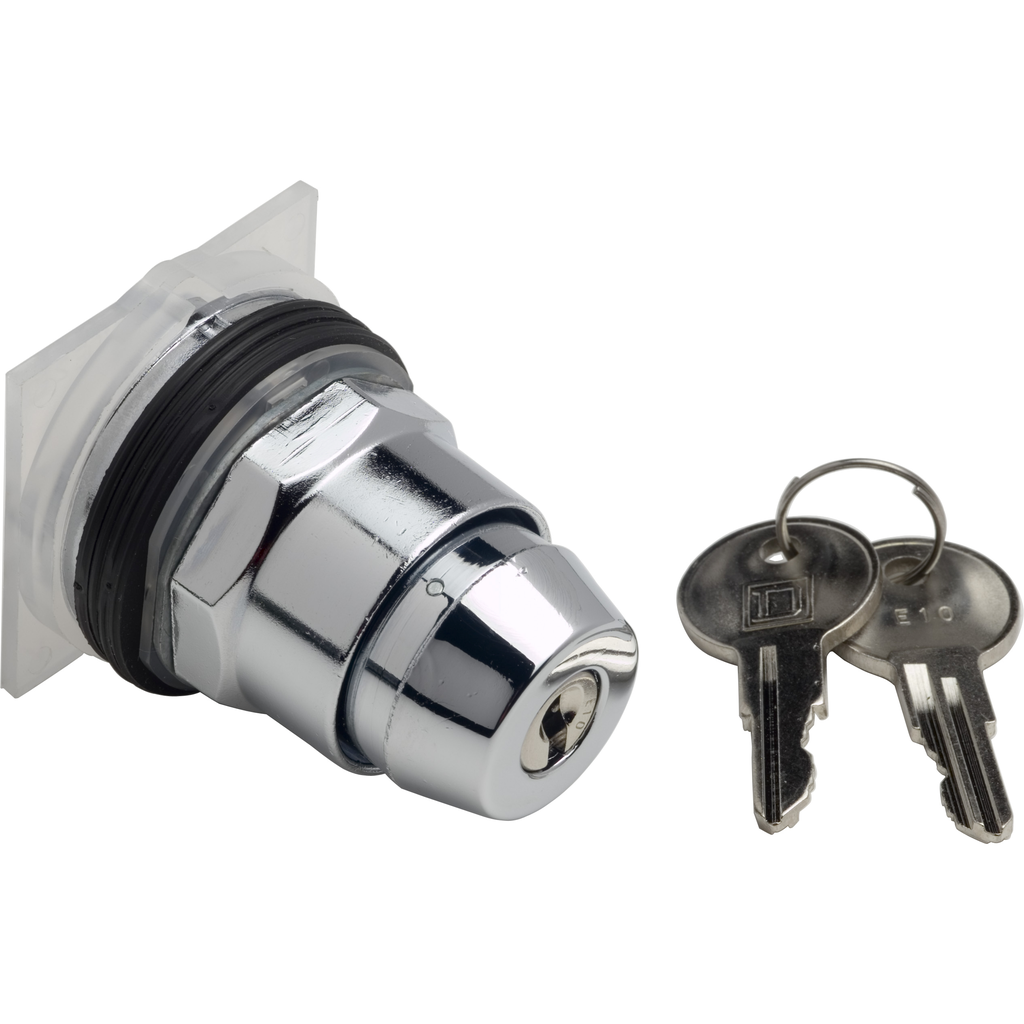

Head for key selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 3 positions, return both sides to center
This selector switch with key operated knob provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant, vibration resistant and oil resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Key Number | E10 |
| Cam Profile | 2 |
| Mounting Diameter | 30 mm |
| Operator Profile | key switch |
| Size | 30 mm |
| Device Presentation | basic element |
| Key Withdrawal Position | center |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| Operator Position Information | 3 positions |
| Type Of Operator | spring return |
| Return | both sides to centre |
| Country of Origin | United States |
| Range Of Product | Harmony 9001K |
| Type Of Operator | spring return |
| Product Or Component Type | head for key selector switch |
| Operator Profile | black key operated knob |
| Device Short Name | K |
