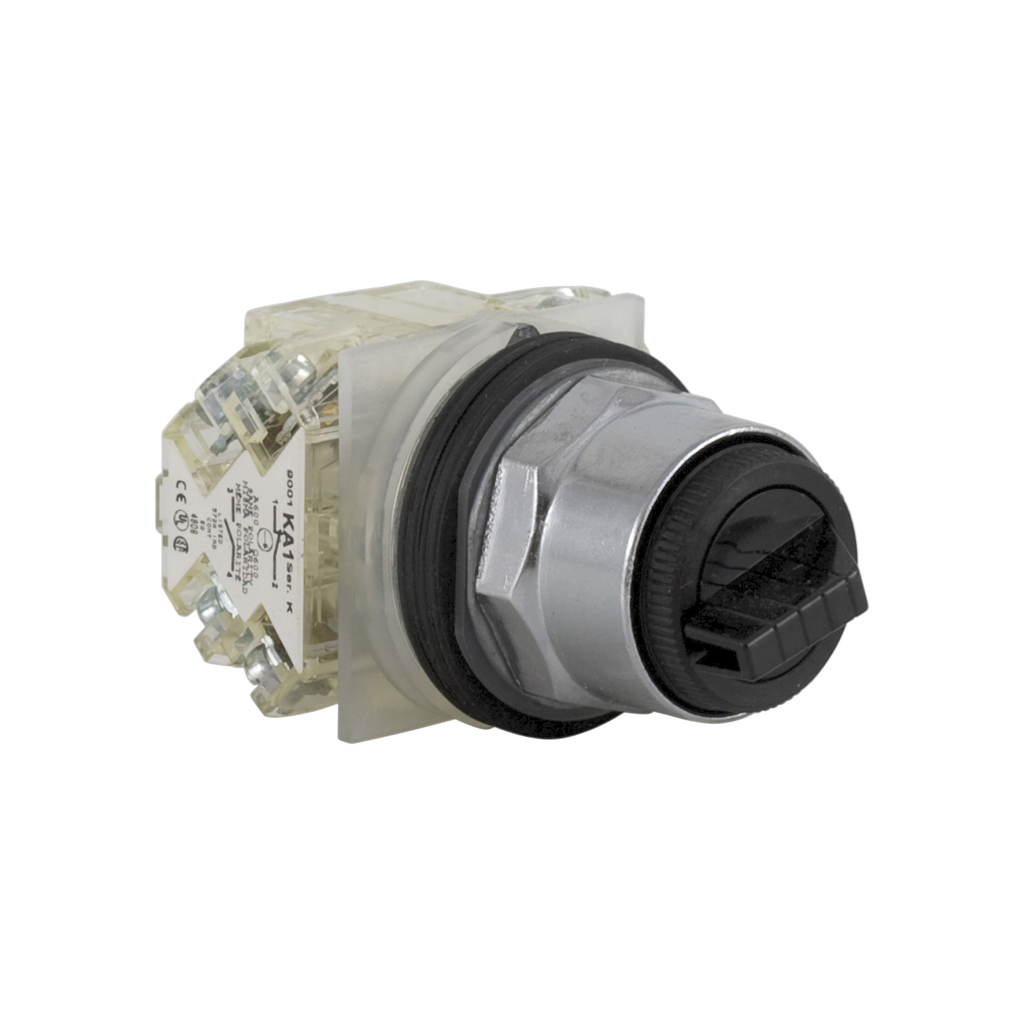

9001KS42BH2 - Selector switch, Harmony 9001K, metal, standard handle, black, 30mm, 3 positions, stay put, 2 CO

9001KS42BH2

Add to Quote Catalogue

Product Certifications	UL listed file E42259 CCN NKCR CE CSA LR24590 class 3211 03
Nema Degree Of Protection	NEMA 1/2/3/3R/4/6/12/13
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Cam Profile	2
Mounting Diameter	30 mm
Operator Profile	standard handle
Cap/Operator Or Lens Colour	black
Size	30 mm
Device Presentation	complete product
Connections - Terminals	screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Contacts Type And Composition	2 C/O
Bezel Material	metal
Operator Position Information	3 positions
Type Of Operator	stay put
Country of Origin	United States
Range Of Product	Harmony 9001K
Type Of Operator	maintained
Product Or Component Type	selector switch
Operator Profile	black standard knob
Device Short Name	K
