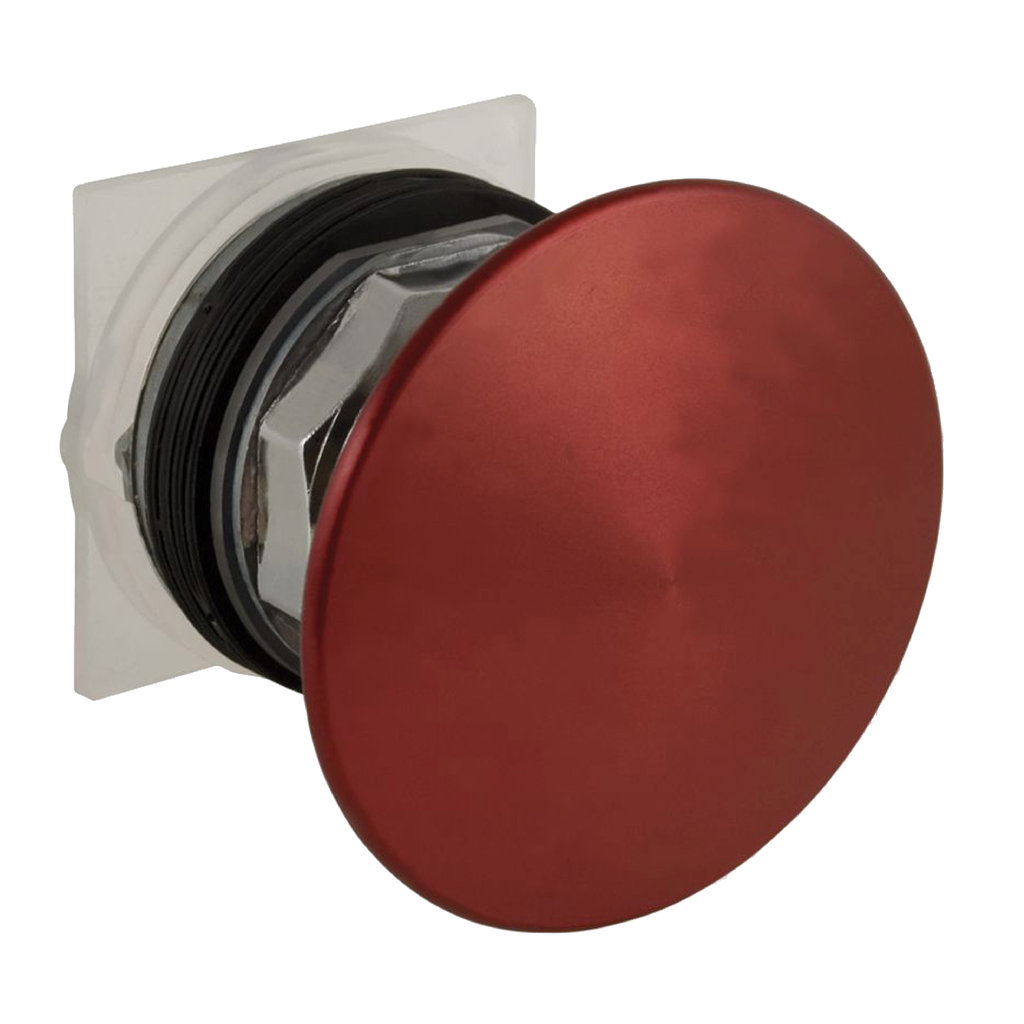

9001KR9RM95 - Head for push button, Harmony 9001K, metal, metal mushroom 60mm, red, 30mm, 2 positions, push pull

9001KR9RM95

Head for push button, Harmony 9001K, metal, metal mushroom 60mm, red, 30mm, 2 positions, push pull

This 60mm mushroom shaped push-button headis ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	NEMA UL 508
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	50 gn IEC 60068-2-27
Vibration Resistance	7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529
Standards	IEC 60947-5-1 IEC 60947-1 IEC 60947-5-4 JIS C 4520 JIS C 852 UL 508 CSA C22.2 No 14
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class II IEC 61140
Nema Degree Of Protection	NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6
Protective Treatment	TC
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Operator Additional Information	screw-on metal with set screw
Mounting Diameter	30 mm
Operator Profile	mushroom Ø 60 mm
Shape Of Signaling Unit Head	round
Cap/Operator Or Lens Colour	red
Head Material	metal
Net Weight	0.15 kg
Size	30 mm
Cad Overall Height	60 mm
Device Presentation	basic element
Contacts Type And Composition	without contact block
Bezel Material	metal
Operator Position Information	2 positions
Mechanical Durability	5000000 cycles
Type Of Operator	push-pull
Operating Position	any position
Cad Overall Width	60 mm
Cad Overall Depth	74 mm
Country of Origin	Mexico
Width	60 mm
Height	60 mm
Weight	0.15 kg
Range Of Product	Harmony 9001K
Type Of Operator	push-pull
Product Or Component Type	head for push-button
Operator Profile	red mushroom Ø 60 mm, unmarked
Product Compatibility	contact block 9001KA..
Device Short Name	9001K

Head for push button, Harmony 9001K, metal, metal mushroom 60mm, red, 30mm, 2 positions, push pull
