9001KR9P38RH13

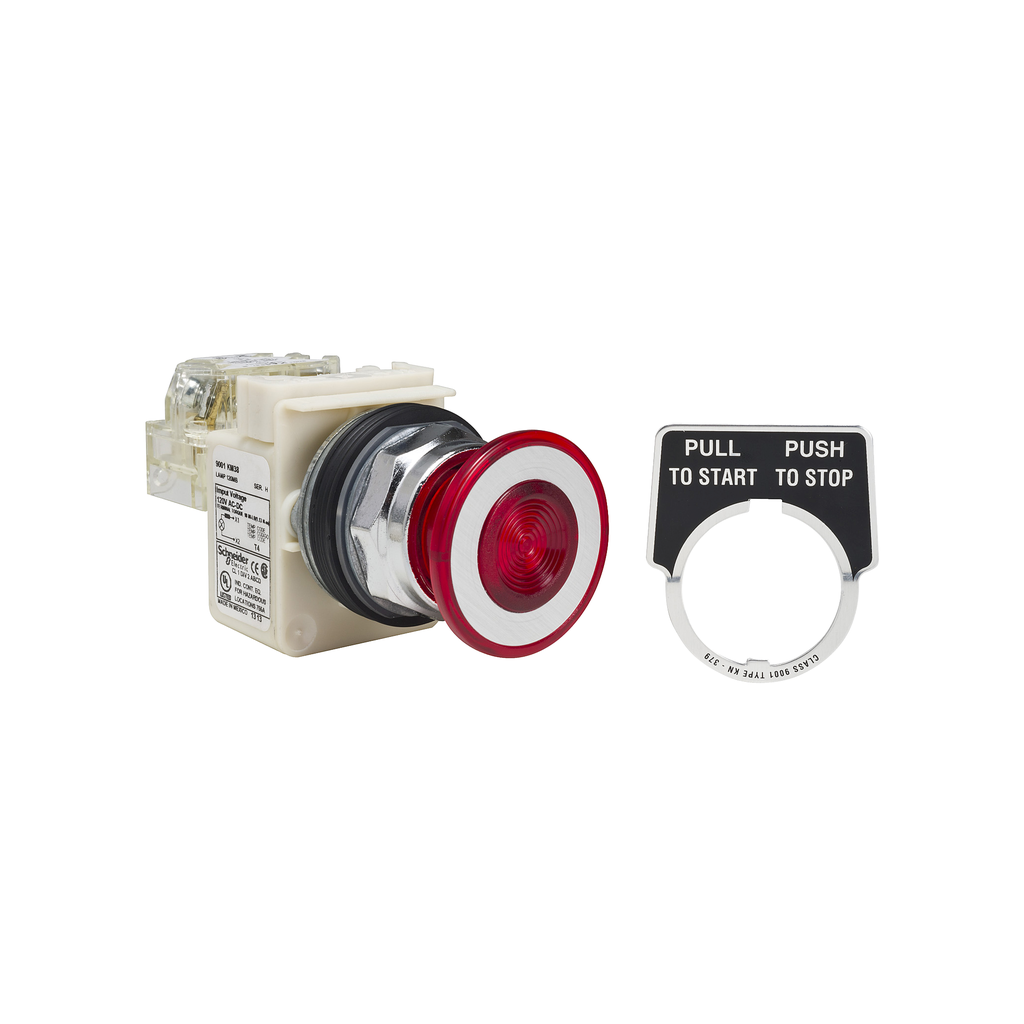

Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 120V, 1 changeover
This mushroom shaped push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs It weights 0.185 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 120 V |
| Light Source | incandescent bulb |
| Mounting Diameter | 30 mm |
| Light Block Supply | full voltage or resistor |
| Operator Profile | mushroom Ø 41 mm |
| Cap/Operator Or Lens Colour | red |
| Size | 30 mm |
| Device Presentation | complete product |
| Contacts Type And Composition | 1 C/O |
| Bezel Material | metal |
| [Ie] Rated Operational Current |
|
| Contact Operation | standard |
| Operator Position Information | 2 positions |
| Type Of Operator | push-pull |
| Bulb Base | BA 9s |
| Country of Origin | Mexico |
| Operator Additional Information | screw-on plastic |
| Range Of Product | Harmony 9001K |
| Product Or Component Type | illuminated push-button |
| Device Short Name | K |
