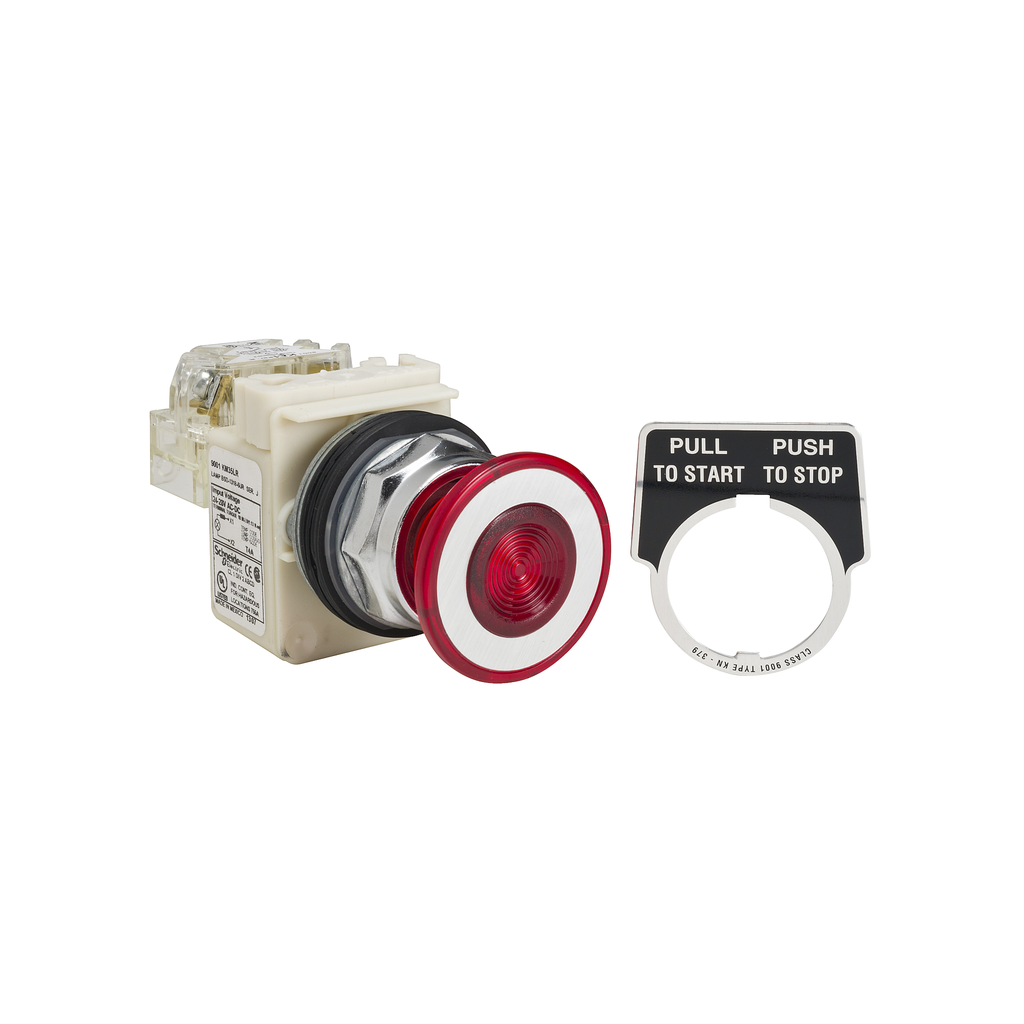

Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, LED red, 24...28V, 1 CO
This circular shape push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its clear colors It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits It weights 0.19 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 24...28 V |
| Light Source | LED |
| Light Block Supply | without supply |
| Mounting Diameter | 30 mm |
| Operator Profile | mushroom Ø 41 mm |
| Cap/Operator Or Lens Colour | red |
| Size | 30 mm |
| Device Presentation | complete product |
| Contacts Type And Composition | 1 C/O |
| Bezel Material | metal |
| [Ie] Rated Operational Current |
|
| Contact Operation | standard |
| Light Source Colour | red |
| Operator Position Information | 2 positions |
| Type Of Operator | push-pull |
| Bulb Base | BA 9s |
| Country of Origin | United States |
| Operator Additional Information | screw-on plastic |
| Range Of Product | Harmony 9001K |
| Product Or Component Type | illuminated push-button |
| Device Short Name | K |
