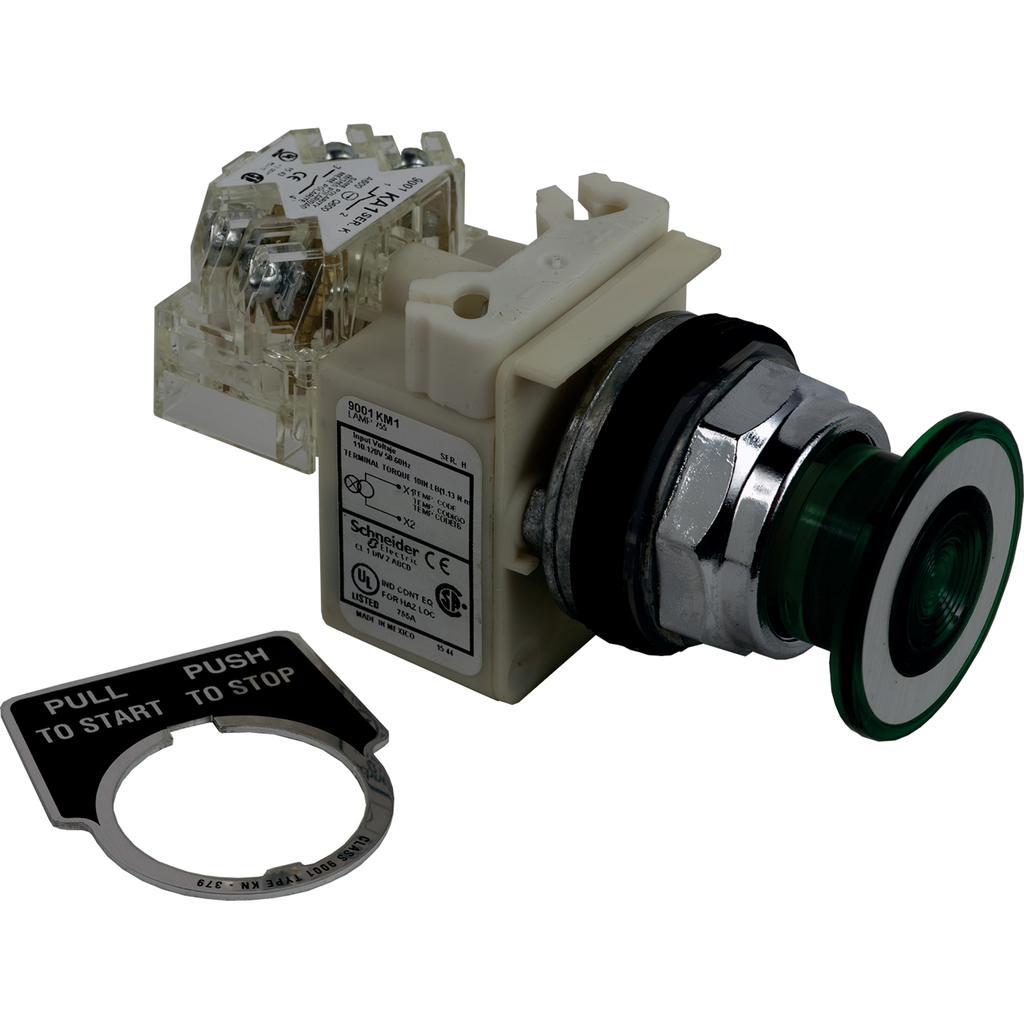

Illuminated push button, Harmony 9001K, metal, mushroom 41mm, green, 30mm, 2 positions, push pull, 110...120V, 1 CO
This Harmony 9001K, modular illuminated green push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel and is supplied with 110V AC integral LED. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 110...120 V AC |
| Mounting Diameter | 30 mm |
| Light Block Supply | via integral transformer |
| Operator Profile | mushroom Ø 41 mm |
| Cap/Operator Or Lens Colour | green |
| Size | 30 mm |
| Device Presentation | complete product |
| Contacts Type And Composition | 1 C/O |
| Light Source | incandescent |
| Bezel Material | metal |
| [Ie] Rated Operational Current |
|
| Connections - Terminals | screw clamp terminals |
| Contact Operation | standard |
| Operator Position Information | 2 positions |
| Type Of Operator | push-pull |
| Operating Position | any position |
| Supply Frequency | 50...60 Hz |
| Bulb Base | BA 9s |
| Country of Origin | Mexico |
| Operator Additional Information | screw-on plastic |
| Range Of Product | Harmony 9001K |
| Type Of Operator | push-pull |
| Product Or Component Type | illuminated push-button |
| Operator Profile | green mushroom Ø 41 mm |
| Device Short Name | K |
