9001KR8G

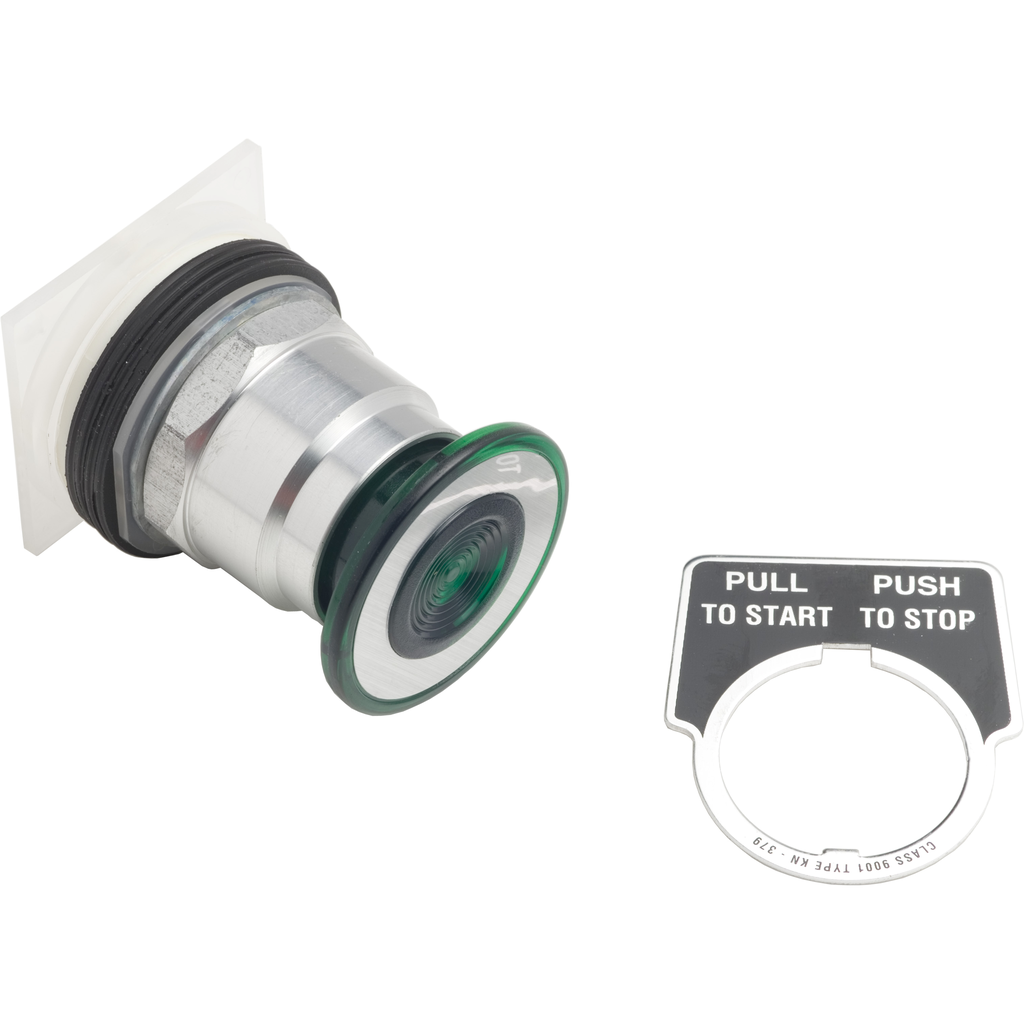

Head for spring return push button, Harmony 9001K, metal, green, mushroom 41mm, 30mm, 3 positions
This green head for push-button is a separate component of the range of control and signaling units, Harmony 9001K diameter 30mm. It has a chromium-plated metal bezel. It is supplied with a green knob. It features spring return flush push. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Contacts Type And Composition | without contact block |
|---|---|
| Bezel Material | metal |
| Operator Position Information | 3 positions |
| Mounting Diameter | 30 mm |
| Operator Profile | mushroom Ø 41 mm |
| Type Of Operator | pull : spring return, center : stay put, push : spring return |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | green |
| Country of Origin | Mexico |
| Operator Additional Information | screw-on plastic |
| Range Of Product | Harmony 9001K |
| Operator Profile | green flush |
| Product Or Component Type | head for push-button |
| Device Short Name | 9001K |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
Documents
- 9001K Momentary/Maintained, Push-Pull, Operator Installation Sheet - 30072-100-26 (pdf)
- Harmony 9001K/9001SK 30mm Push Buttons Brochure - 9001BR1001_30mmPushButtons (pdf)
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Push Buttons: Section 19 - Digest 179 (2024) - Push-Buttons-Digest-Catalog-0100CT2401-SEC-19 (pdf)
