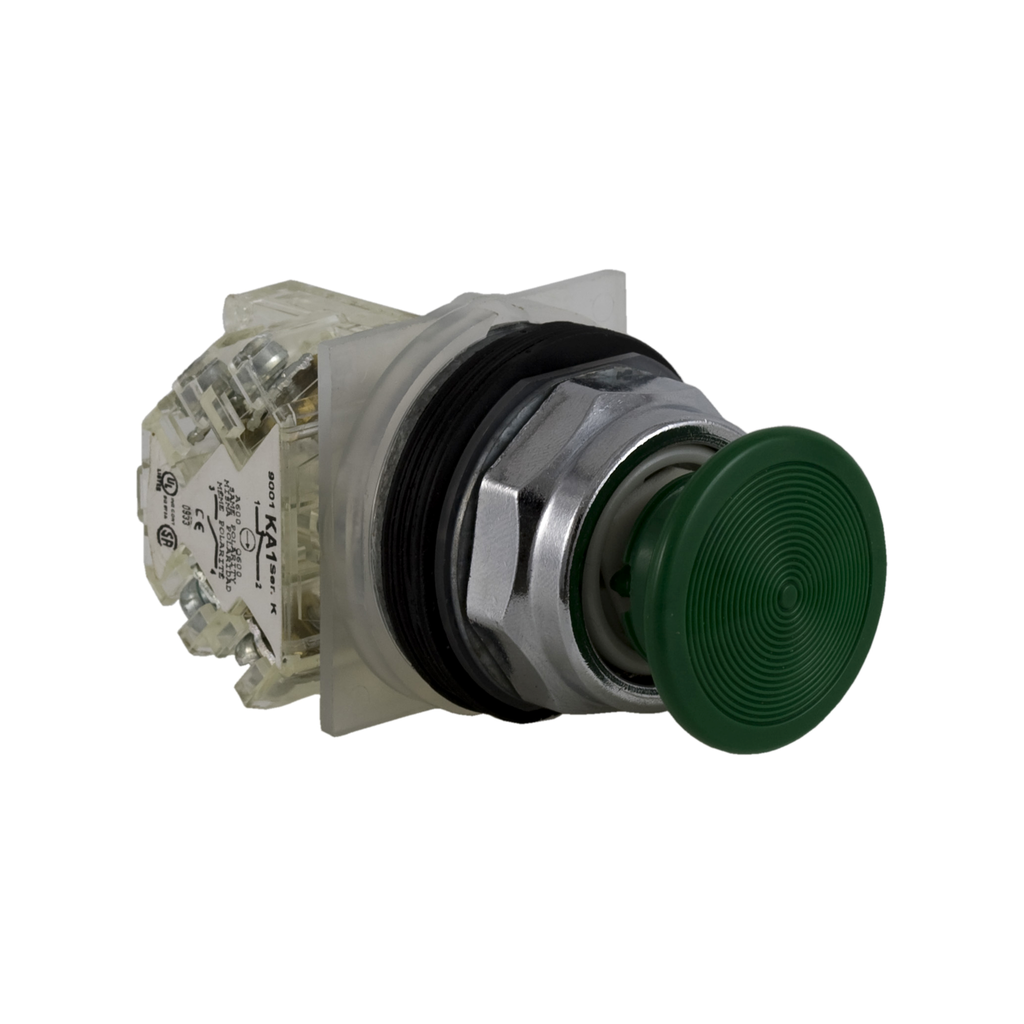

Push-button, Harmony 9001K, metal, snap-in plastic mushroom 35mm, green, 30mm, spring return, 1 C/O
This Harmony 9001K, modular green push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, it has 1 x NO + 1 x NC contact and uses screw-clamp terminals. This 35mm mushroom shaped push button headis ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Contacts Type And Composition | 1 C/O |
| Bezel Material | metal |
| [Ie] Rated Operational Current |
|
| Connections - Terminals | screw clamp terminals |
| Contact Operation | standard |
| Light Source | without |
| Light Block Supply | without supply |
| Mounting Diameter | 30 mm |
| Operator Profile | mushroom Ø 35 mm |
| Type Of Operator | spring return |
| Operating Position | any position |
| Cap/Operator Or Lens Colour | green |
| Size | 30 mm |
| Device Presentation | complete product |
| Country of Origin | Mexico |
| Operator Additional Information | snap-in plastic |
| Range Of Product | Harmony 9001K |
| Operator Profile | green mushroom Ø 35 mm |
| Type Of Operator | spring return |
| Product Or Component Type | push-button |
| Device Short Name | K |
