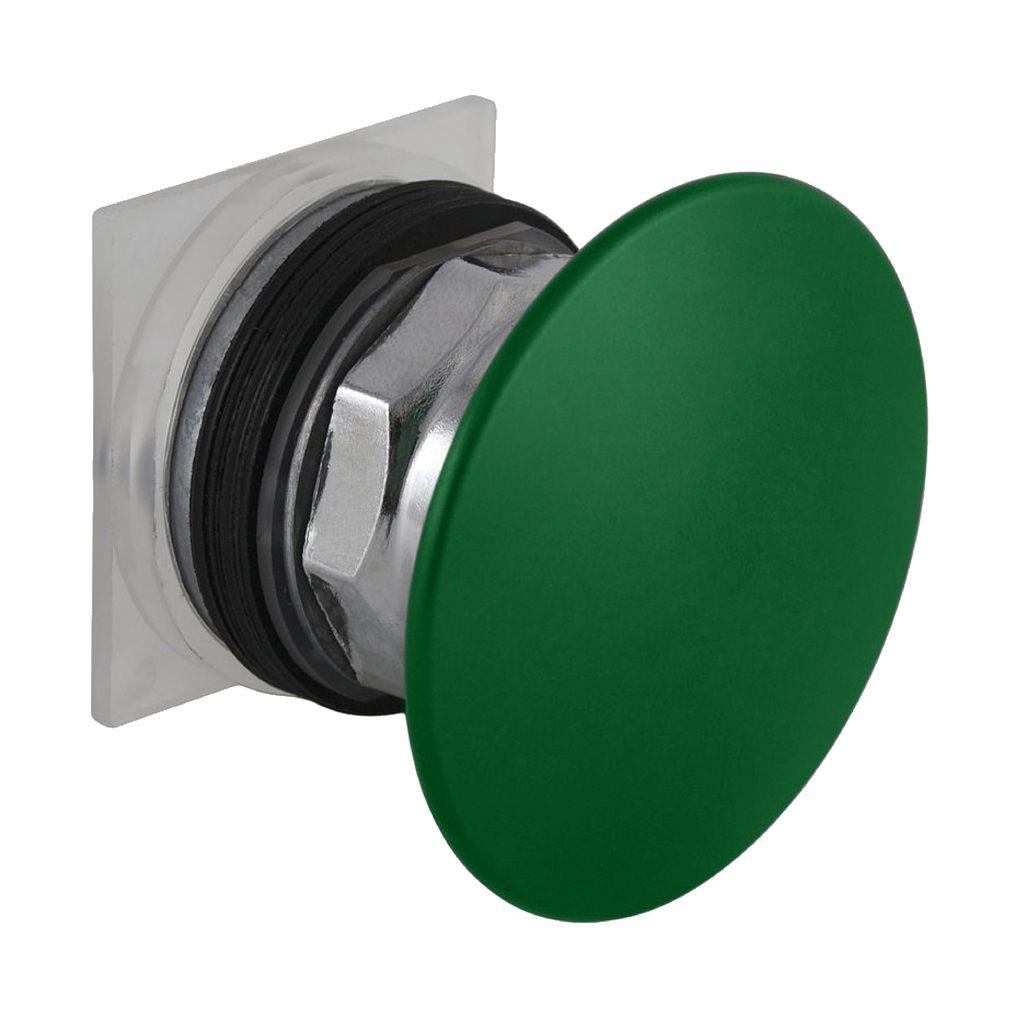

Head for push button, Harmony 9001K, metal, metal mushroom 60mm, green, 30mm, spring return
This 60mm mushroom shaped push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Standards |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 61140 |
| Nema Degree Of Protection |
|
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Operator Additional Information | screw-on metal with set screw |
| Mounting Diameter | 30 mm |
| Operator Profile | mushroom Ø 60 mm |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | green |
| Head Material | metal |
| Net Weight | 0.15 kg |
| Size | 30 mm |
| Cad Overall Height | 60 mm |
| Device Presentation | basic element |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| Mechanical Durability | 5000000 cycles |
| Type Of Operator | spring return |
| Operating Position | any position |
| Cad Overall Width | 60 mm |
| Cad Overall Depth | 70 mm |
| Country of Origin | Mexico |
| Width | 60 mm |
| Height | 60 mm |
| Weight | 0.15 kg |
| Range Of Product | Harmony 9001K |
| Type Of Operator | spring return |
| Product Or Component Type | head for push-button |
| Operator Profile | green mushroom Ø 60 mm, unmarked |
| Product Compatibility | contact block 9001KA.. |
| Device Short Name | 9001K |
