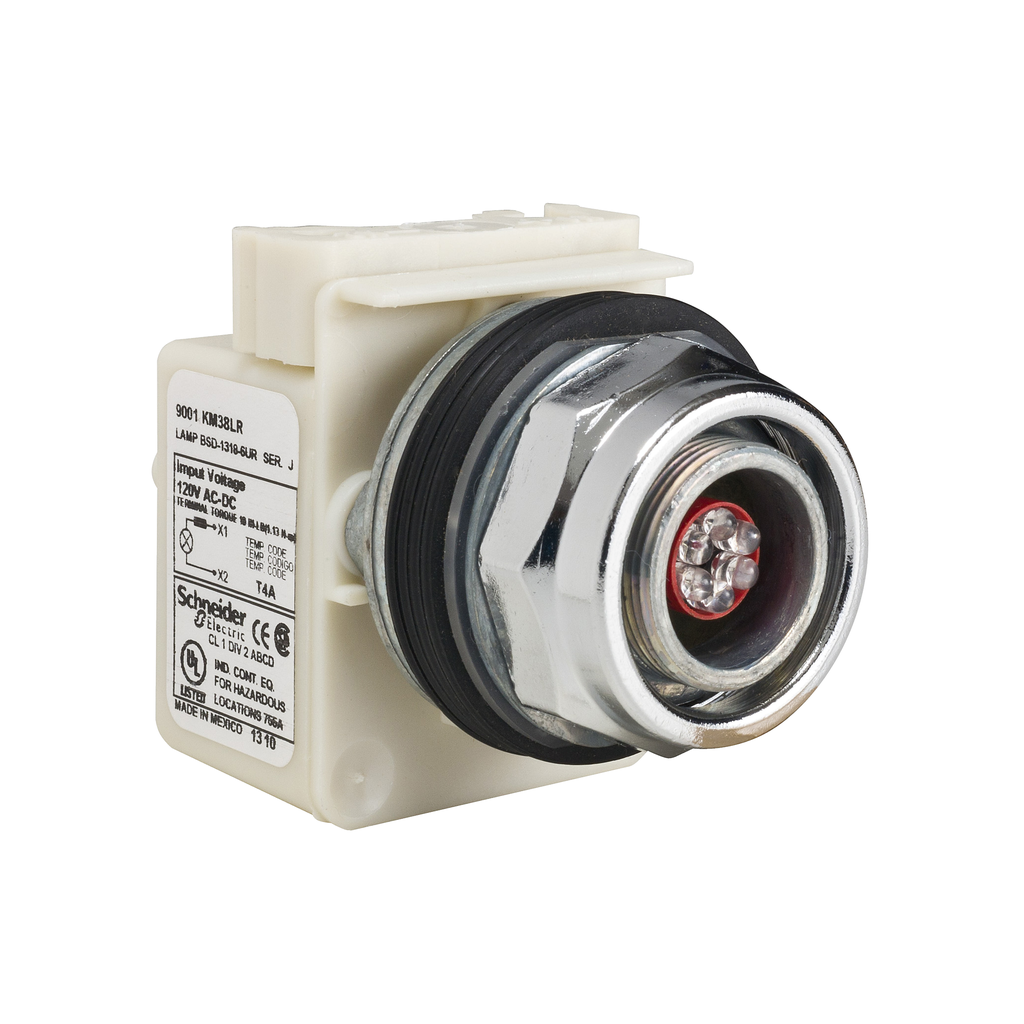

Head for pilot light, Harmony 9001K, metal, without cap, 30mm, LED red, 120V
This single component pilot light provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to clear colors and illumination via integral red LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections It weights 0.14 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 120 V |
| Light Block Supply | direct 120 V |
| Mounting Diameter | 30 mm |
| Operating Mode | normal |
| Cap/Operator Or Lens Colour | without cap |
| Size | 30 mm |
| Light Source | Red LED |
| Bezel Material | metal |
| Light Source Colour | red |
| Shape Of Screw Head | round |
| Bulb Base | BA 9s |
| Country of Origin | Mexico |
| Range Of Product | Harmony 9001K |
| Product Or Component Type | head for pilot light |
| Device Short Name | K |
