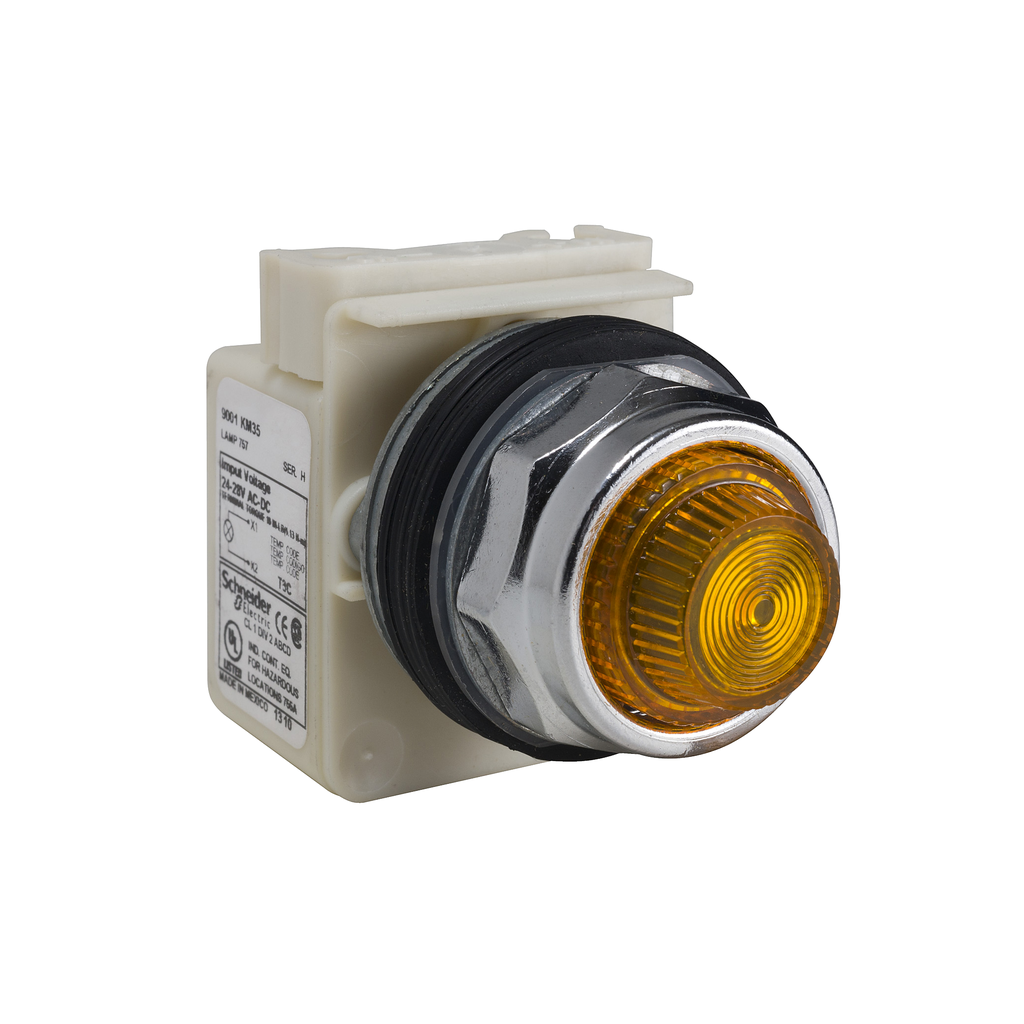

Pilot light, Harmony 9001K, metal, polycarbonate, fresnel, amber, 30mm, 24-28V
This Harmony 9001K, amber pilot light with plastic fresnel is supplied with 24V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | pilot light |
| Device Short Name | K |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 24...28 V |
| Connections - Terminals | screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| [Us] Rated Supply Voltage | 24...28 V AC/DC |
| Light Source | incandescent |
| Bezel Material | metal |
| Lens Material | polycarbonate |
| Light Source | incandescent bulb |
| Light Block Supply |
|
| Mounting Diameter | 30 mm |
| Light Block Supply | full voltage |
| Operating Position | any position |
| Operating Mode | normal |
| Cap/Operator Or Lens Colour | amber |
| Lens Type | fresnel plastic |
| Shape Of Screw Head | round |
| Size | 30 mm |
| Bulb Base | BA 9s |
| Device Presentation | complete product |
| Lens Type | fresnel |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
