9001KM38

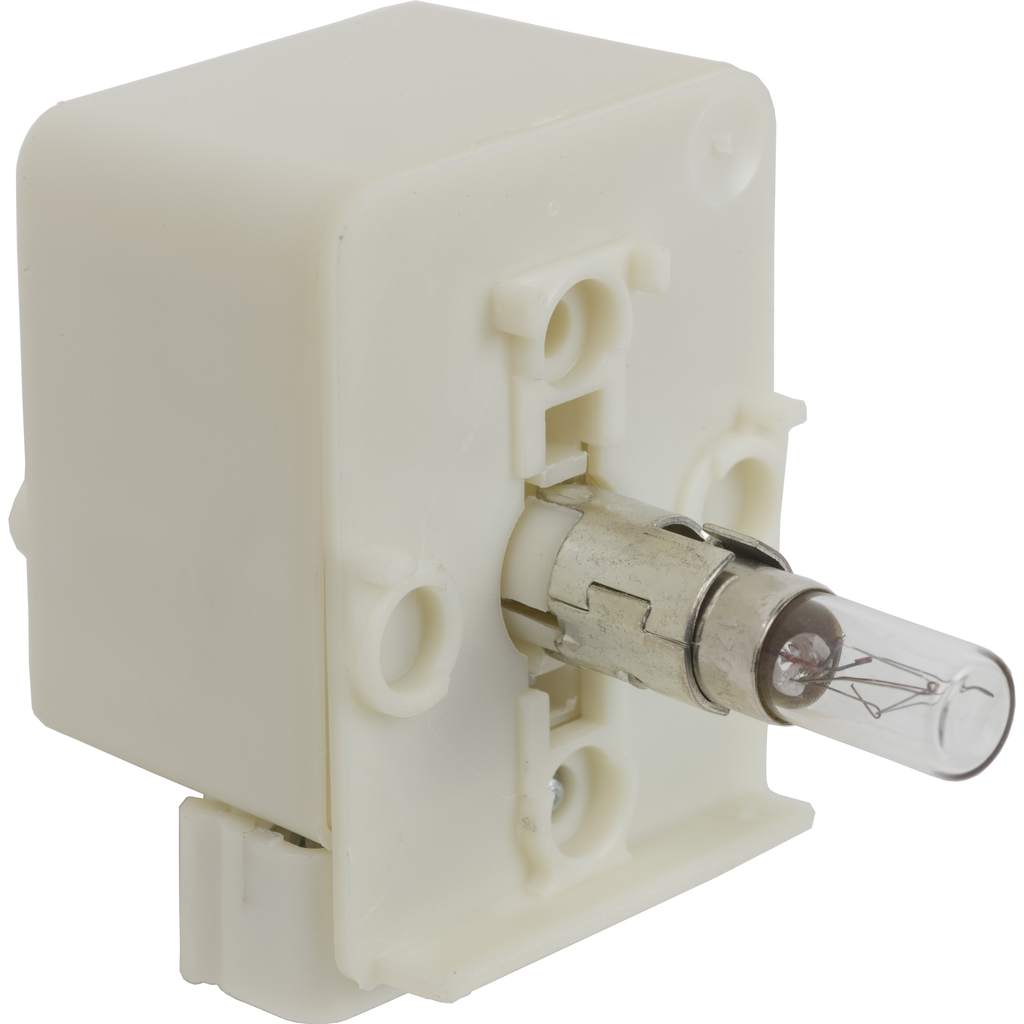

Light block, Harmony 9001K, Harmony 9001SK, 30mm, incandescent bulb, 120V
This light block with integral resistance provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due illumination via integral LED, enabling complex machine statuses to be read at a glance It works at a rated voltage of 120V. It is impact resistant, dust resistant, and vibration resistant thanks to its IP20, making it ideal for operation in harsh environments
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Light Source | incandescent bulb |
| Light Block Supply | full voltage or resistor |
| Net Weight | 0.05 kg |
| Size | 30 mm |
| [Us] Rated Supply Voltage | 120 V AC/DC |
| Country of Origin | Mexico |
| Weight | 0.05 kg |
| Range Of Product |
|
| Light Block Supply | direct via integral resistance |
| Product Or Component Type | light block |
| Device Short Name | 9001K |
| Bulb Base | BA 9s |
Documents
- 9001KM Light Modules, Standard and Shallow Depth Installation Instructions - 65013-009-26_02 (pdf)
- Harmony 9001K/9001SK 30mm Push Buttons Brochure - 9001BR1001_30mmPushButtons (pdf)
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Harmony 9001K, SK, KX 30mm Push Buttons Catalog - 9001CT1103 (pdf)
- Push Buttons: Section 19 - Digest 179 (2024) - Push-Buttons-Digest-Catalog-0100CT2401-SEC-19 (pdf)
