9001KA1G

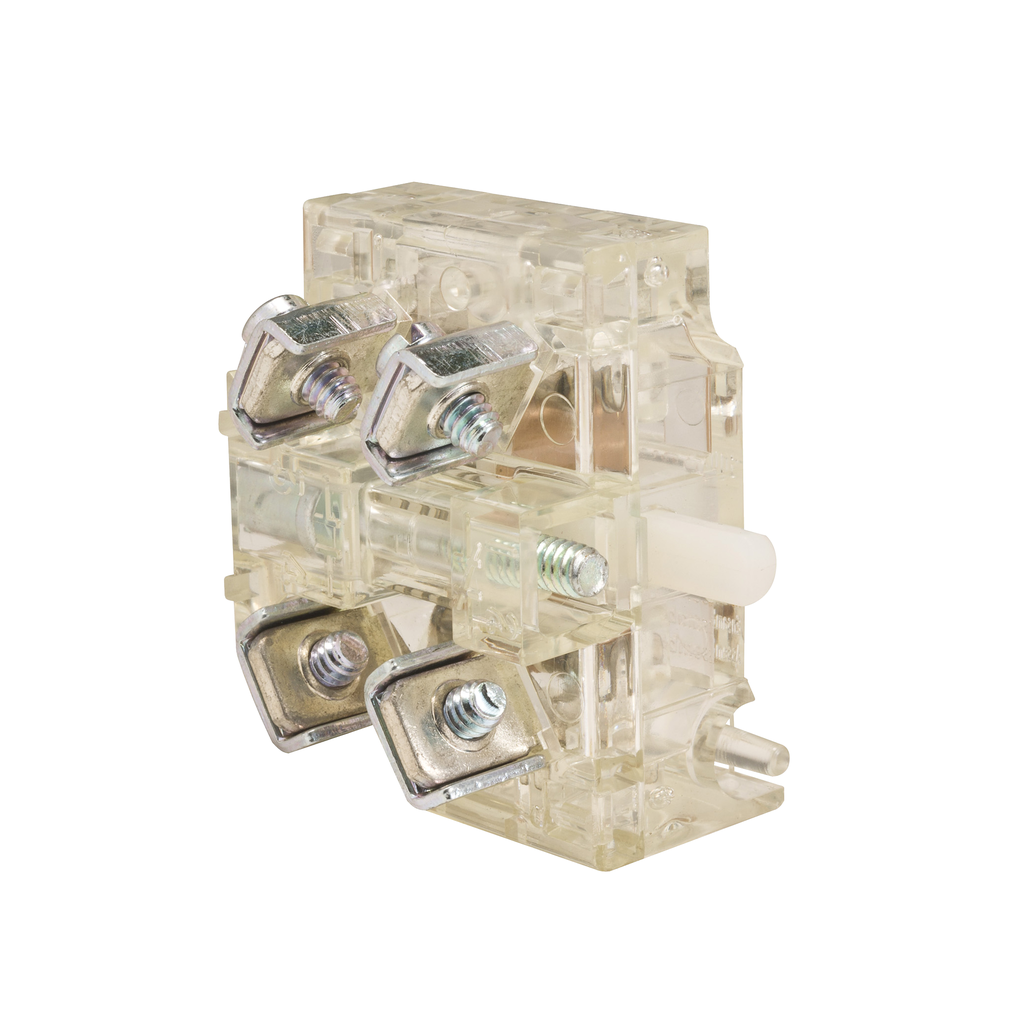

Contact block, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw terminals for lug, standard, 1 CO
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches The line Rated current is 10 A It is easily installed and replaced on 9001K complete push-button units and selector switches The package dimensions are 2.540 cm (width) x 16.387 cm (length) x 6.452 cm (height) High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 0...600 V |
| Connections - Terminals | screw terminals for lug |
| Short-Circuit Protection | 10 A without fingersafe |
| Contacts Material | silver alloy contacts |
| Contact Operation | standard |
| Country of Origin | United States |
| Range Of Product |
|
| Product Or Component Type | contact block |
| Contacts Type And Composition | 1 C/O |
| Device Short Name | K |
