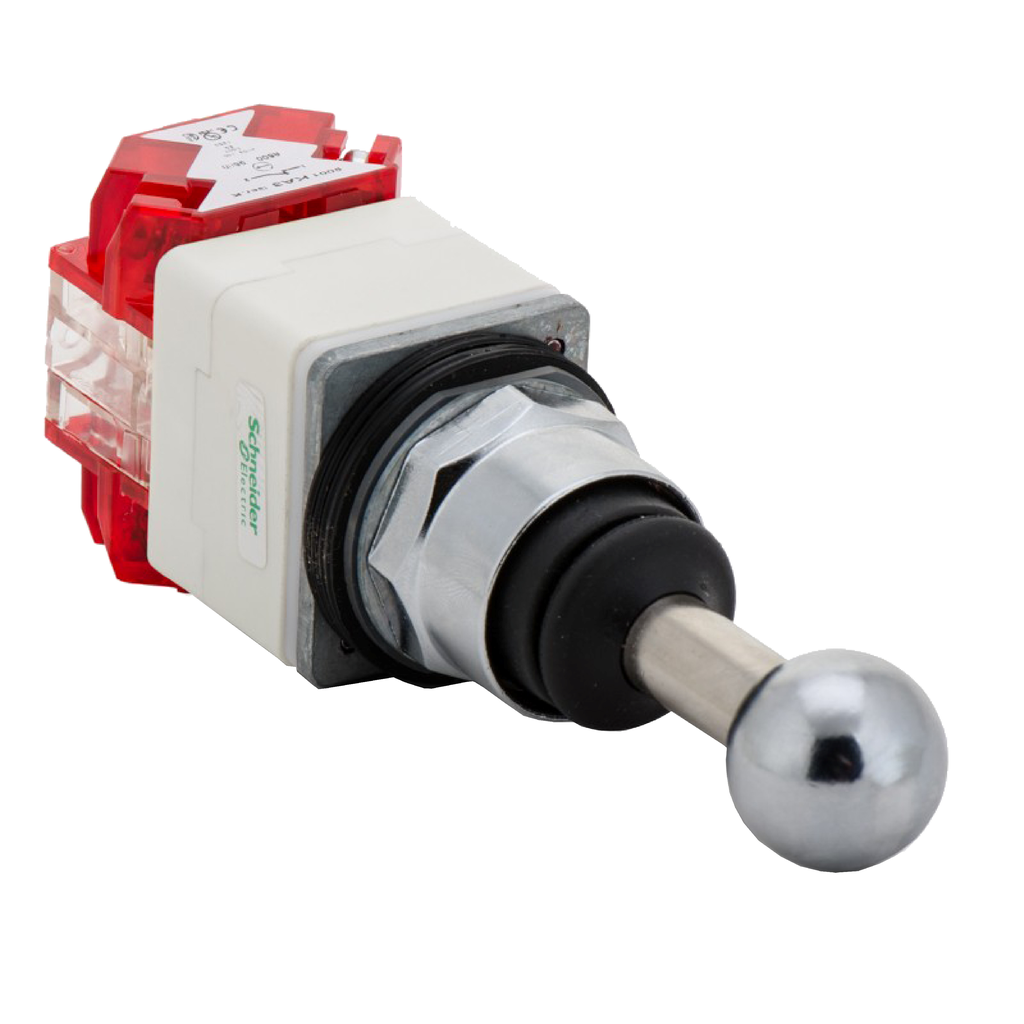

Head for joystick controller, Harmony 9001K, metal, 30mm, 4 directions, spring return with latch to center
This joystick controller is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights. It features a 80mm long operator shaft and 5 positions spring return with latch. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-out. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | II IEC 61140 |
| Nema Degree Of Protection |
|
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mounting Diameter | 30 mm |
| Shape Of Signaling Unit Head | octagonal |
| Operator Direction Information | 4 directions |
| Net Weight | 0.372 kg |
| Size | 30 mm |
| Device Presentation | basic element |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| Type Of Operator | spring return with latch |
| Operating Position | any position |
| Return | to centre |
| Country of Origin | Mexico |
| Weight | 0.372 kg |
| Range Of Product | Harmony 9001K |
| Type Of Operator | spring return with latch |
| Product Or Component Type | head for joystick controller |
| Sale Per Indivisible Quantity | 1 |
| Operator Profile | 80 mm long operating shaft |
| Device Short Name | 9001K |
Documents
- Momentary and Maintained Joystick Operators Installation Instructions - 65013-001-21 (pdf)
- Harmony 9001K/9001SK 30mm Push Buttons Brochure - 9001BR1001_30mmPushButtons (pdf)
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Harmony 9001K, SK, KX 30mm Push Buttons Catalog - 9001CT1103 (pdf)
