9001K2L1

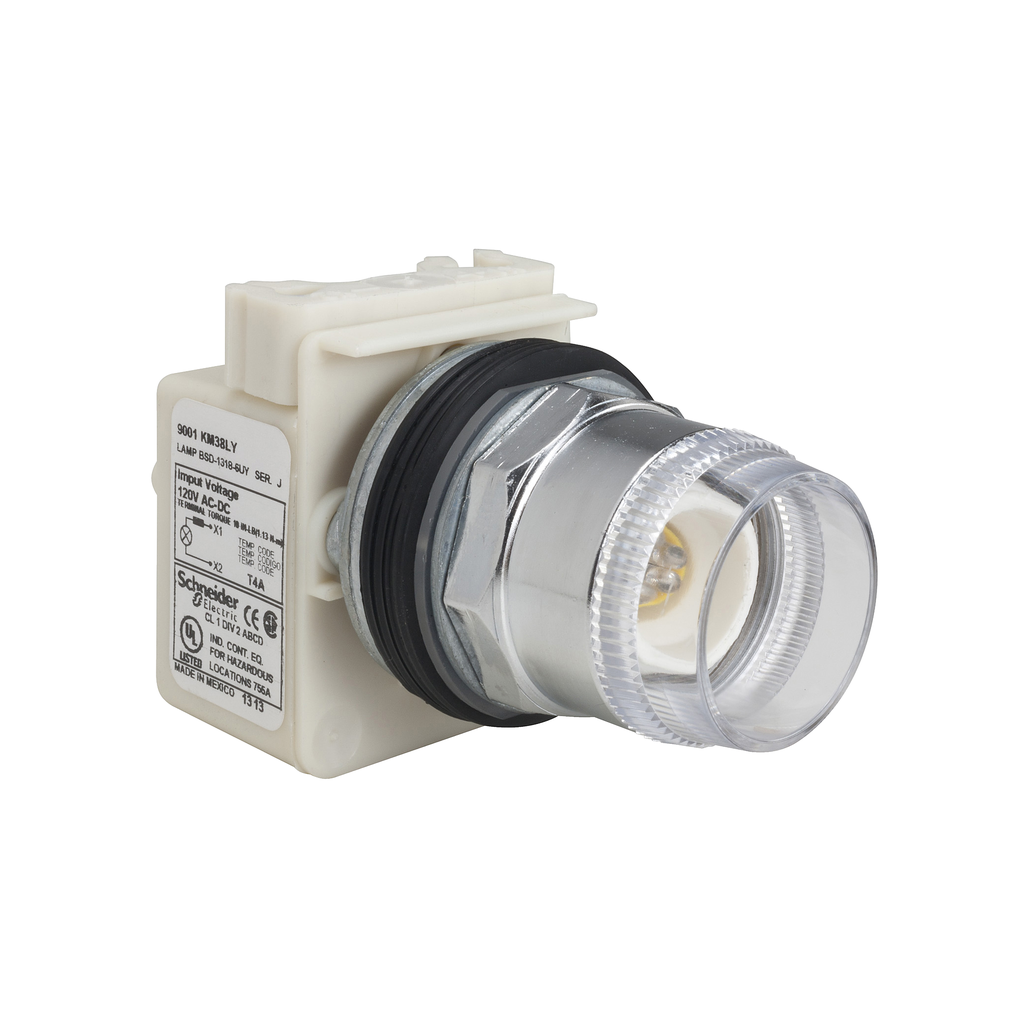

Head for illuminated push button, Harmony 9001K, metal, projecting, without cap, 30mm, spring return, 110...120V
This illuminated push-button with transformer provides an ergonomic and visual interface for controlling your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 110...120 V |
| Light Source | incandescent bulb |
| Mounting Diameter | 30 mm |
| Light Block Supply | via integral transformer |
| Operator Profile | projecting |
| Cap/Operator Or Lens Colour | without cap |
| Size | 30 mm |
| Device Presentation | basic element |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| [Ie] Rated Operational Current |
|
| Type Of Operator | spring return |
| Supply Frequency | 50...60 Hz |
| Bulb Base | BA 9s |
| Country of Origin | United States |
| Operator Additional Information | without guard |
| Range Of Product | Harmony 9001K |
| Product Or Component Type | head for illuminated push-button |
| Device Short Name | K |
