9001K1L

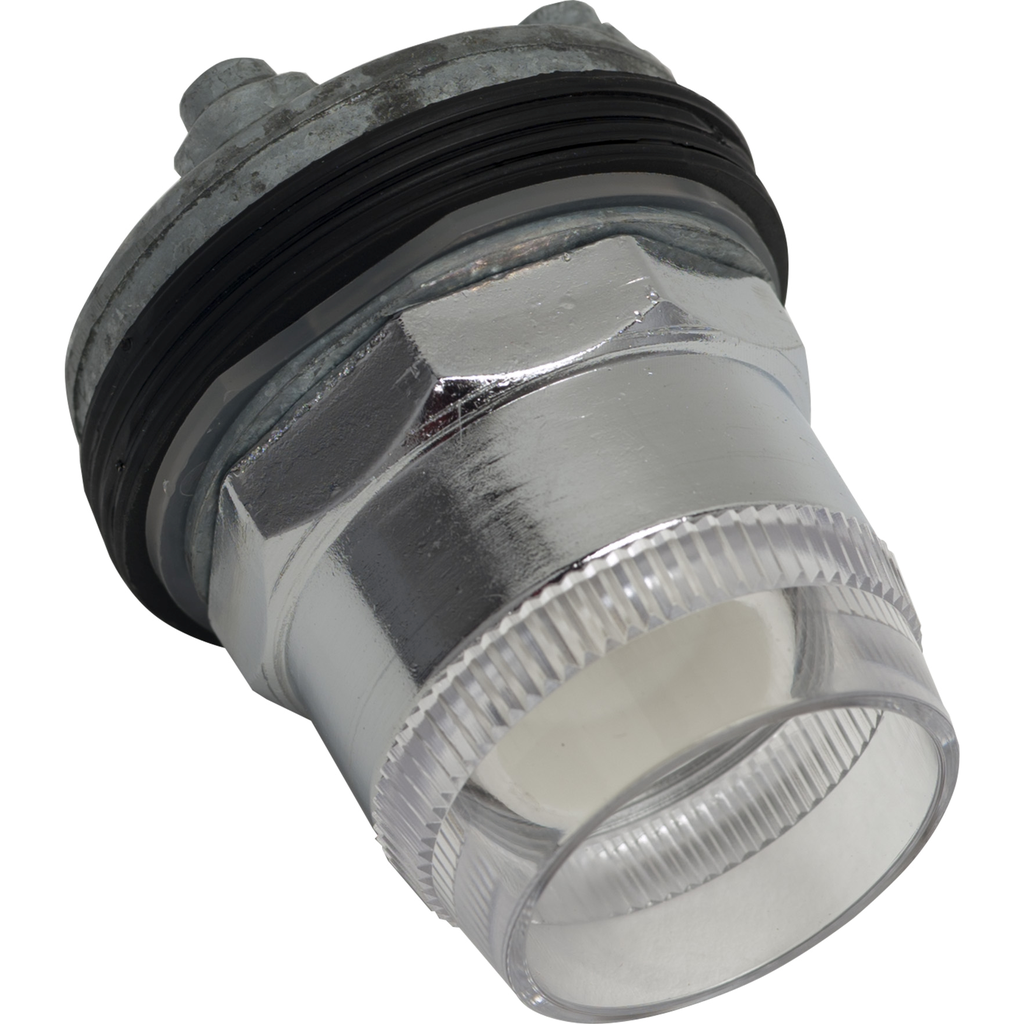

Illuminated push button head, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, without bulb
This illuminated push-button with full guard provides an ergonomic and visual interface for controlling your machines It is clearly distinguishable visually at a distance thanks to its illuminated head It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mounting Diameter | 30 mm |
| Light Block Supply | without supply |
| Operator Profile | flush |
| Cap/Operator Or Lens Colour | without cap |
| Size | 30 mm |
| Device Presentation | basic element |
| Contacts Type And Composition | without contact block |
| Light Source | without |
| Bezel Material | metal |
| [Ie] Rated Operational Current |
|
| Type Of Operator | spring return |
| Bulb Base | BA 9s |
| Country of Origin | Mexico |
| Operator Additional Information | plastic guard |
| Range Of Product | Harmony 9001K |
| Product Or Component Type | head for illuminated push-button |
| Device Short Name | K |
