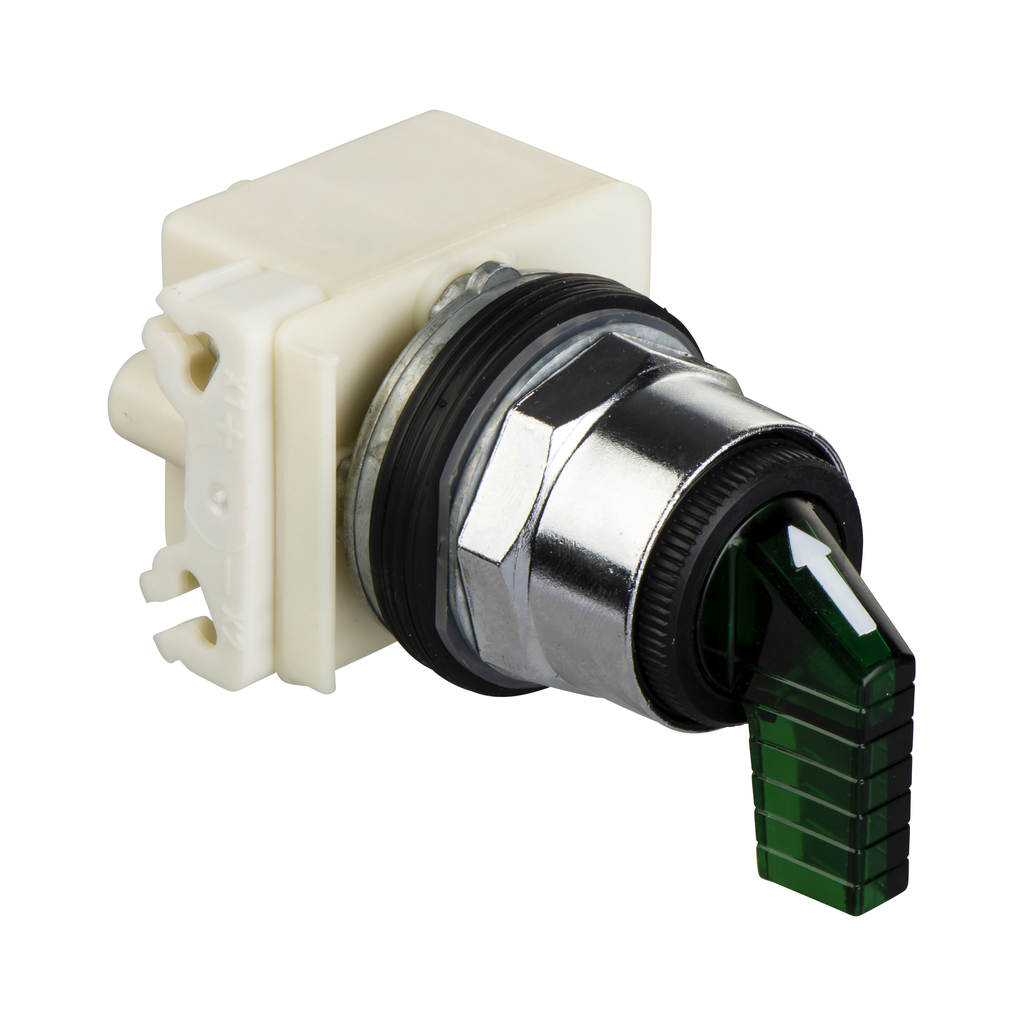

Illuminated selector switch head, Harmony 9001K, metal, long handle, green, 30mm, 2 positions, stay put, LED green, 24-28V
This Harmony 9001K, modular illuminated green selector switch with long handle has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, is supplied with a 24V AC/DC integral LED and is supplied with a E cam. This illuminated selector switch with integral LED and long handle provides a versatile and highly visible interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001K |
|---|---|
| Operator Profile | green long handle |
| Type Of Operator | stay put |
| Product Or Component Type | head for illuminated selector switch |
| Device Short Name | 9001K |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Contacts Type And Composition | without contact block |
| Light Source | LED |
| Bezel Material | metal |
| Product Compatibility | 9001KA2 side 1 or 2 |
| Operator Position Information | 2 positions |
| Mechanical Durability | 500000 cycles |
| Light Block Supply | direct |
| Mounting Diameter | 30 mm |
| Light Block Colour | green |
| Shape Of Signaling Unit Head | octagonal |
| Net Weight | 0.245 kg |
| Bulb Base | BA 9s |
| Device Presentation | basic element |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards |
|
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP66 IEC 60529 |
