9001K11J1R

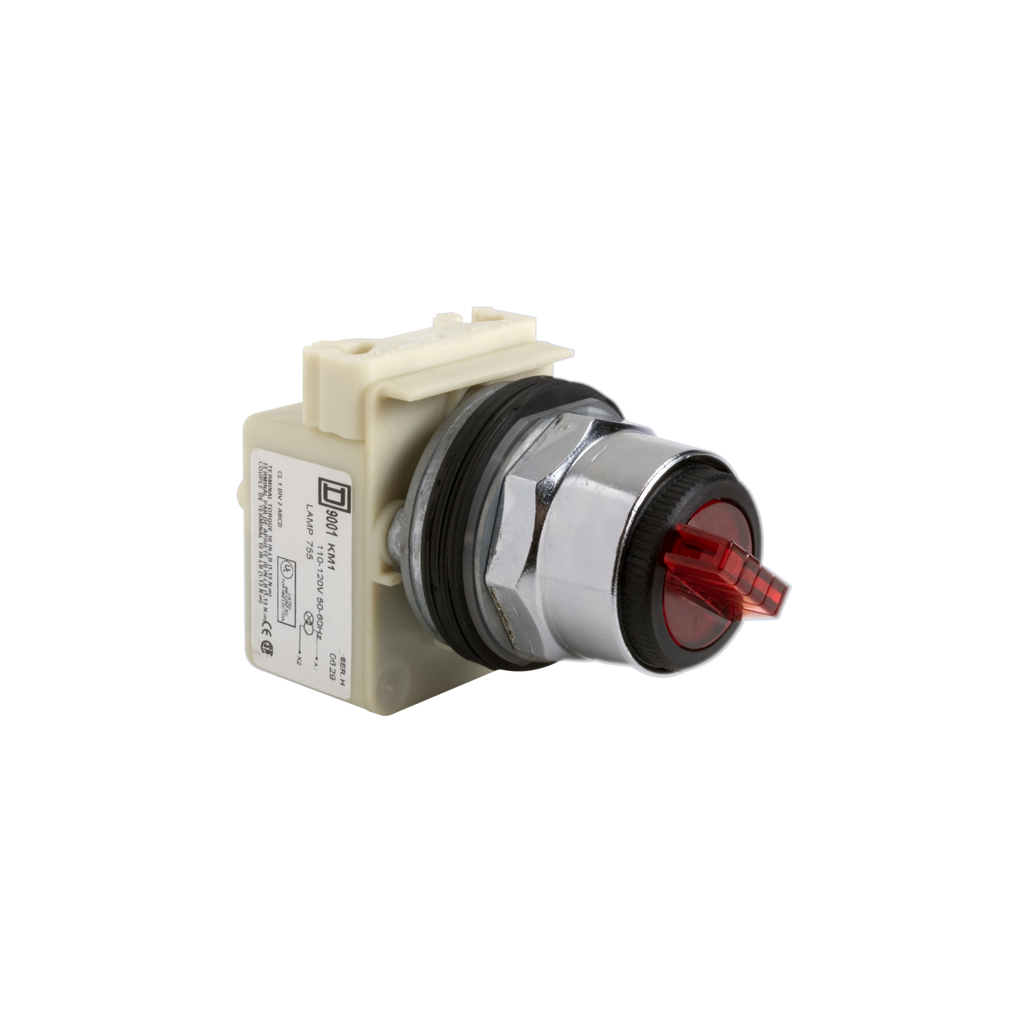

Illuminated selector switch head, Harmony 9001K, metal, standard handle, red, 30mm, 2 positions, stay put, 110-120V
This illuminated selector switch with integral LED and standard knob provides a versatile and highly visible interface for controlling your machines It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs High performance International standards & certifications (Marine ABS certification, IP20, Type 1, 2, 3, 3R, 4, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Warranty | 18 months |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| [Us] Rated Supply Voltage | 110...120 V |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| Operator Position Information | 2 positions |
| Light Block Supply | via integral transformer |
| Cap/Operator Or Lens Colour | red |
| Type Of Operator | maintained |
| Size | 30 mm |
| Operator Profile | 1 projecting push-button |
| Bulb Base | BA 9s |
| Country of Origin | United States |
| Range Of Product | Harmony 9001K |
| Enclosure Type | dust and oil resistant weatherproof enclosure indoor/outdoor |
| Product Or Component Type | head for illuminated selector switch |
Documents
- 9001 K/SK Selector Switches Installation Instructions - 65013-002-18 (pdf)
- Harmony 9001K/9001SK 30mm Push Buttons Brochure - 9001BR1001_30mmPushButtons (pdf)
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Harmony 9001K, SK, KX 30mm Push Buttons Catalog - 9001CT1103 (pdf)
- Push Buttons: Section 19 - Digest 179 (2024) - Push-Buttons-Digest-Catalog-0100CT2401-SEC-19 (pdf)
