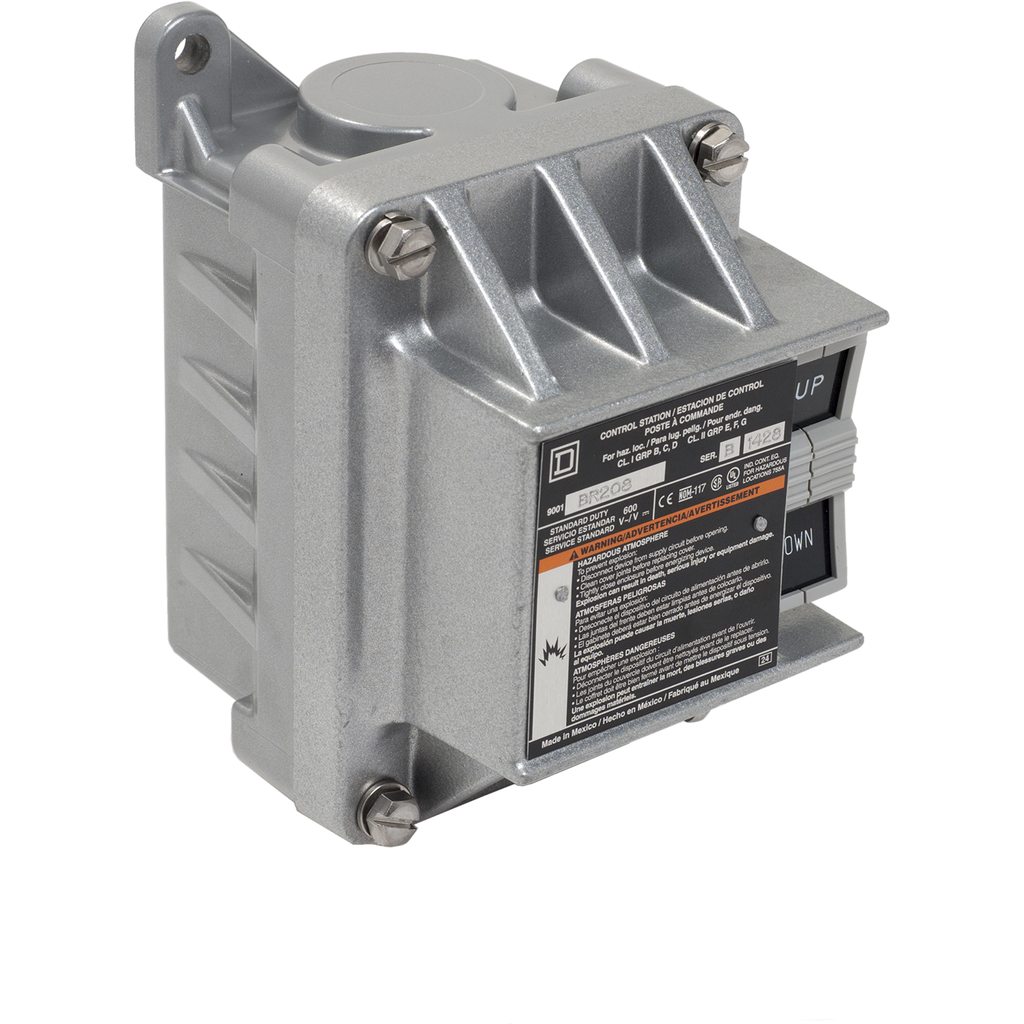

Push button, Type B, standard duty control station, 5A, 600 VAC, UP/DOWN, NEMA 7/9
These standard duty control stations come complete with an enclosure, operators and contacts. This control station has a external toggle to operate the two momentary push buttons inside. It has a UP push button with a normally open contact. It has a DOWN push button with a normally open contact. This NEMA 7/9 hazardous location control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Control Station Application | two functions |
|---|---|
| Range Of Product | Harmony 9001B |
| Colour Of Base Of Enclosure | grey |
| Product Or Component Type | complete control station |
| Device Short Name | 9001BR |
| Warranty | 18 months |
| Contacts Type And Composition | 1 NO + 1 NO |
| Control Station Composition |
|
| [Ie] Rated Operational Current | 5 A 600 V, AC |
| Mechanical Durability | 5000000 cycles |
| Type Of Operator | momentary |
| Marking | CE |
| Material | cast zinc |
| Type Of Installation | indoor |
| Device Mounting | surface |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1305038EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1305038EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Environmental Characteristic | hazardous location |
| Nema Degree Of Protection | NEMA 7/9 |
