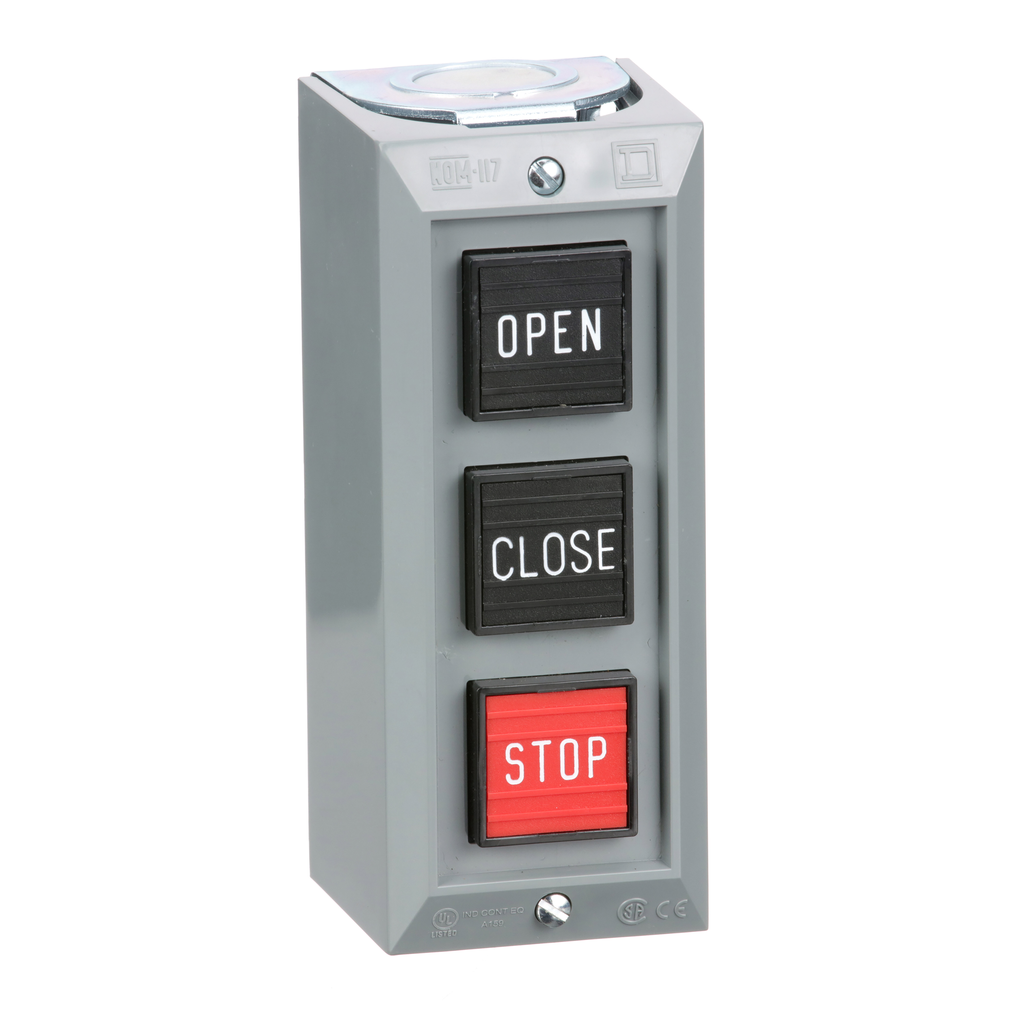

Complete control station, Harmony 9001B, 3 push buttons OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1
These standard duty control stations come complete with an enclosure, operators and contacts. This control station has three square momentary push buttons. It has a OPEN push button with a normally open and a normally closed contact. It has a CLOSE push button with a normally open and a normally closed contact. It also has a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Environmental Characteristic | standard environment |
| Nema Degree Of Protection | NEMA 1 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Control Station Composition | 3 push-buttons OPEN-CLOSE-STOP |
| Type Of Installation | indoor |
| Connections - Terminals | screw clamp terminal |
| Contacts Type And Composition | 2 NO + 3 NC |
| [Ie] Rated Operational Current | 5 A 600 V |
| Device Mounting | surface |
| Country of Origin | United States |
| Range Of Product | Harmony 9001B |
| Product Or Component Type | complete control station |
| Device Short Name | 9001BG |
Documents
- Mushroom Button for Standard Push Button Operators Installation Instructions - 65013-004-04B (pdf)
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Harmony Control Stations and Enclosures Catalog - 9001CT1104 (pdf)
- Push Buttons: Section 19 - Digest 179 (2024) - Push-Buttons-Digest-Catalog-0100CT2401-SEC-19 (pdf)
