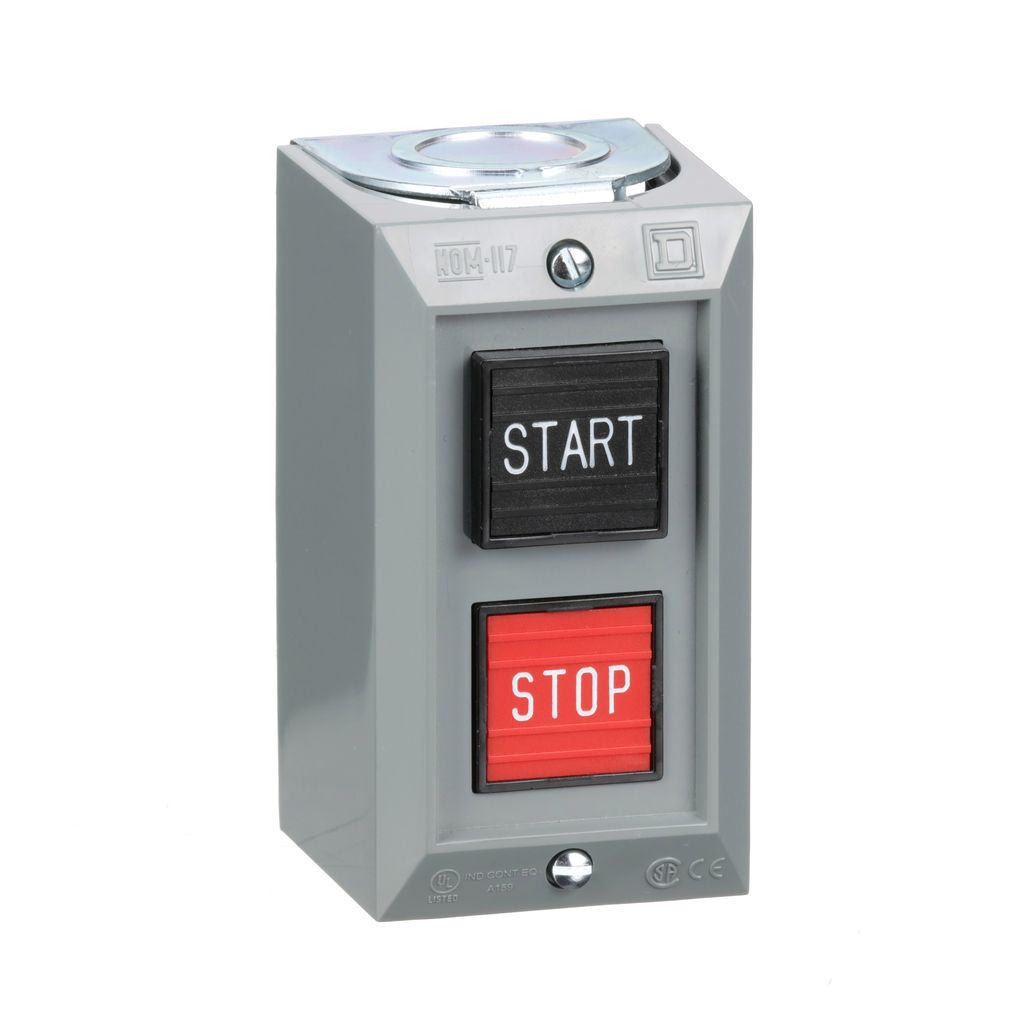

Complete control station, Harmony 9001B, 2 push buttons START/STOP, interlocked contact, 5A, 600V AC, 2NO, NEMA 1
These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a START push button with a normally open contact and a STOP push button with a normally closed contact. This control station has maintained contacts. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Environmental Characteristic | standard environment |
| Nema Degree Of Protection | NEMA 1 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Control Station Composition | 2 push-buttons START-STOP |
| Type Of Installation | indoor |
| Connections - Terminals | screw clamp terminal |
| Contacts Type And Composition | 2 NO |
| [Ie] Rated Operational Current | 5 A 600 V |
| Contact Operation | interlocked |
| Device Mounting | surface |
| Country of Origin | Mexico |
| Range Of Product | Harmony 9001B |
| Product Or Component Type | complete control station |
| Device Short Name | 9001BG |
