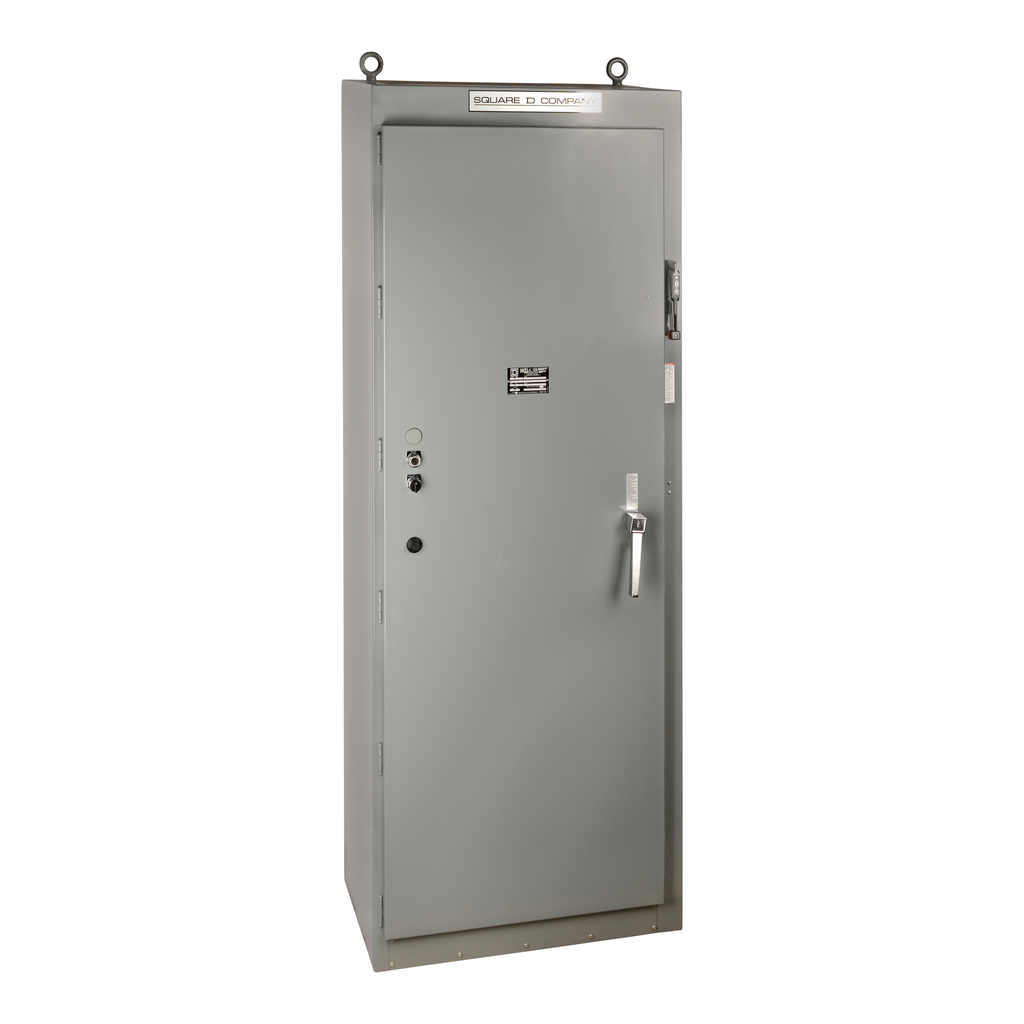

8940RG3QV06 - Reduced Voltage Pump Panel Size 5, Motor Logic SSOLR, 480 VAC, NEMA 3R Options

8940RG3QV06

Add to Quote Catalogue

Product Certifications	UL Listed NEMA
Nema Degree Of Protection	NEMA 3R
Enclosure Type	weatherproof enclosure indoor/outdoor
Warranty	18 months
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Under investigation
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Thermal Overload Type	Motor Logic solid state class 10/20
Disconnector Device Type	fusible disconnect switch
Height	2362 mm
Control Type	selector switch HAND-OFF-AUTO) push-button START)
Nema Size	6
Device Mounting	surface
Fuse Type	H or K
Maximum Horse Power Rating	200-200 hp 480 V AC, 3 phase
[Uc] Control Circuit Voltage	480 V AC 60 Hz 440 V AC 50 Hz
Electrical Connection	screw terminal
Line Rated Current	270 A
Protection Type	overload phase loss phase unbalance
Control Circuit	common control circuit
Width	914 mm
Depth	489 mm
Permissible Voltage	480 V AC
Associated Fuse Rating	400 A
Number Of Poles	3
Country of Origin	Mexico
Width	914 mm
Height	2362 mm
Product Name	Well-Guard Control
Device Application	pumping
Device Short Name	class 8940 type R
