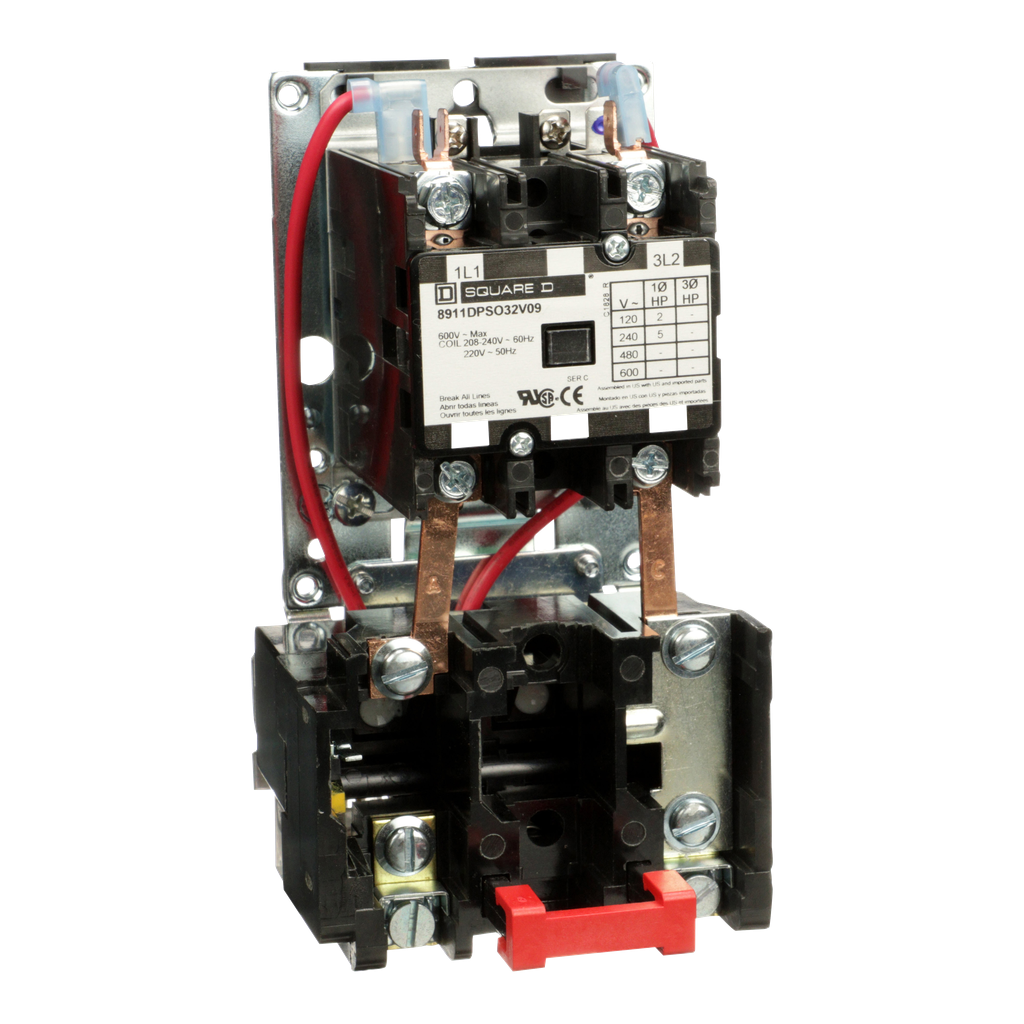

NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 30 amperes. This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Thermal Overload Type | melting alloy |
|---|---|
| Range Of Product | DPS |
| Locked Rotor Rated Current |
|
| Nema Degree Of Protection | not rated (open device) |
| Number Of Thermal Units Required | 1 |
| Poles Description | 2P |
| Country of Origin | United States |
| [Uc] Control Circuit Voltage |
|
| Maximum Horse Power Rating |
|
| Product Or Component Type | Definite Purpose Starter |
| Phase | 1 phase |
| Line Rated Current | 30 A |
| [Ue] Rated Operational Voltage | 600 V AC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Warranty | 18 months |
