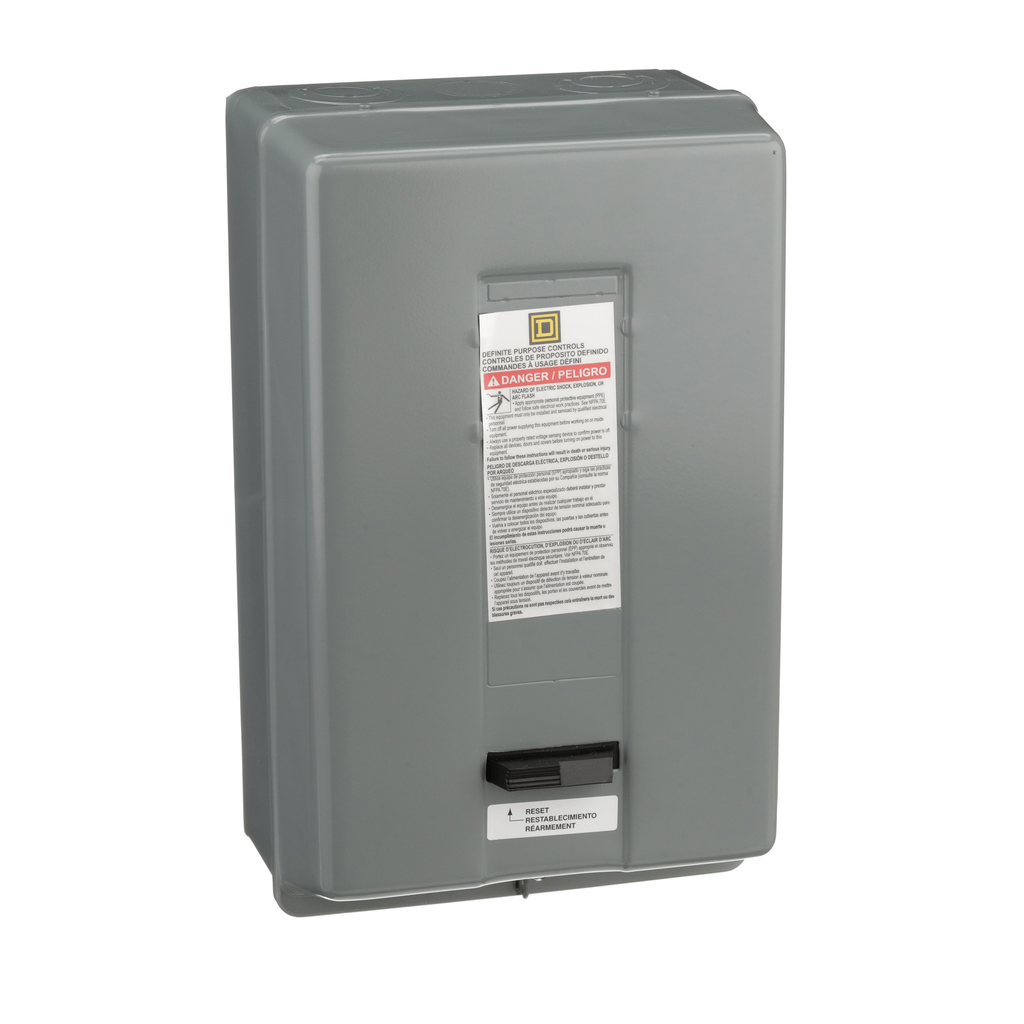

Starter, Definite Purpose, nonreversing, 50A, 3 pole, 3 phase, 440/480VAC 50/60Hz coil, melting alloy overload, NEMA 1
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 50 amperes. This starter has ratings of 3 HP at 115 VAC and 10 HP at 230 VAC single phase. It has a 15 HP at 230 VAC and 30 HP at 460 and 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 440/480 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 12.68 inches tall, 7.80 inches wide and 6.30 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Thermal Overload Type | melting alloy |
|---|---|
| Range Of Product | DPS |
| Locked Rotor Rated Current |
|
| Nema Degree Of Protection | NEMA 1 |
| Number Of Thermal Units Required | 3 |
| Poles Description | 3P |
| Enclosure Material | painted sheet steel |
| Country of Origin | United States |
| [Uc] Control Circuit Voltage |
|
| Maximum Horse Power Rating |
|
| Product Or Component Type | Definite Purpose Starter |
| Phase | 3 phase |
| Line Rated Current | 50 A |
| [Ue] Rated Operational Voltage | 600 V AC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Warranty | 18 months |
