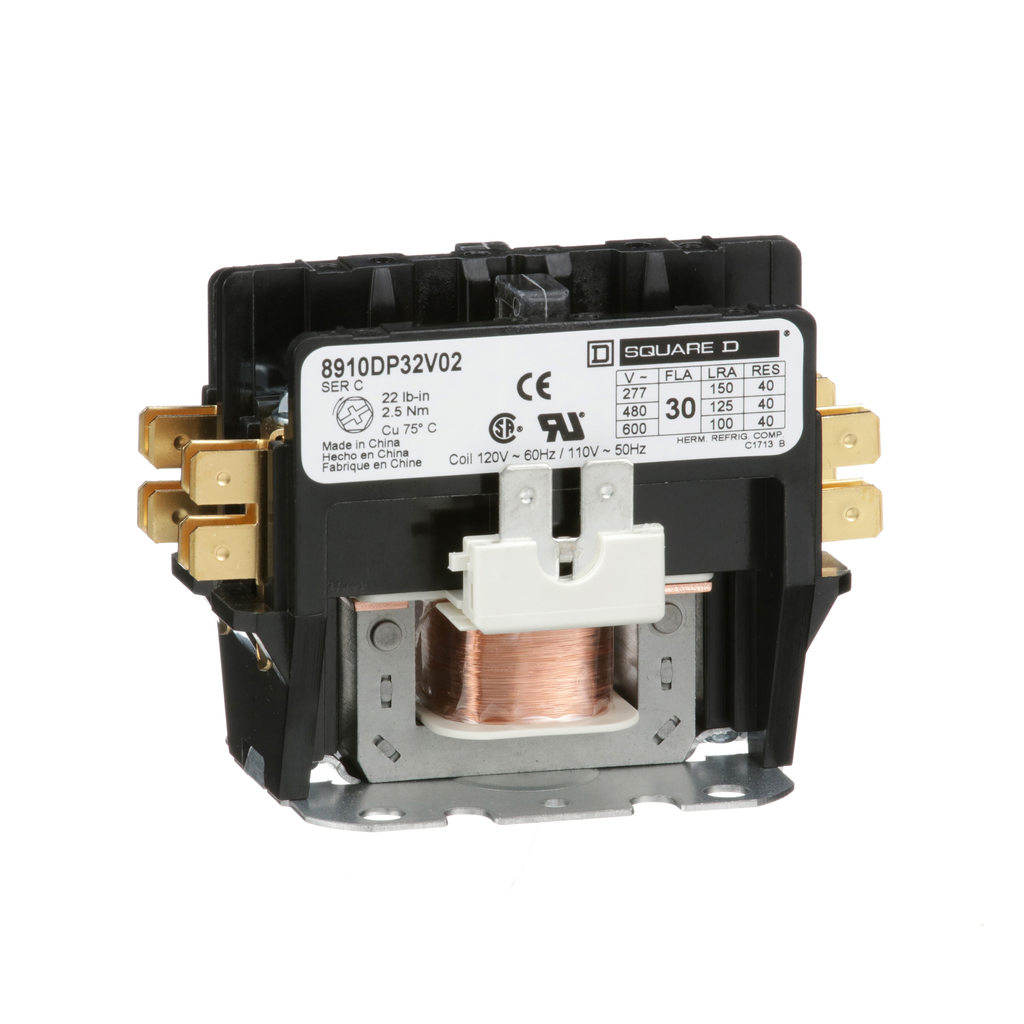

8910DP32V02
Contactor, Definite Purpose, 30A, 2 pole, 110/120VAC 50/60Hz coil, open
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| [Uc] Control Circuit Voltage |
|
| Locked Rotor Rated Current |
|
| Maximum Horse Power Rating |
|
| Phase | 1 phase |
| Electrical Connection |
|
| [Ue] Rated Operational Voltage | 600 V AC |
| Country of Origin | China |
| Range Of Product | DP |
| Product Or Component Type | Definite Purpose Contactor |
| Pole Contact Composition | 2 NO |
| Poles Description | 2P |
| Line Rated Current | 30 A |
