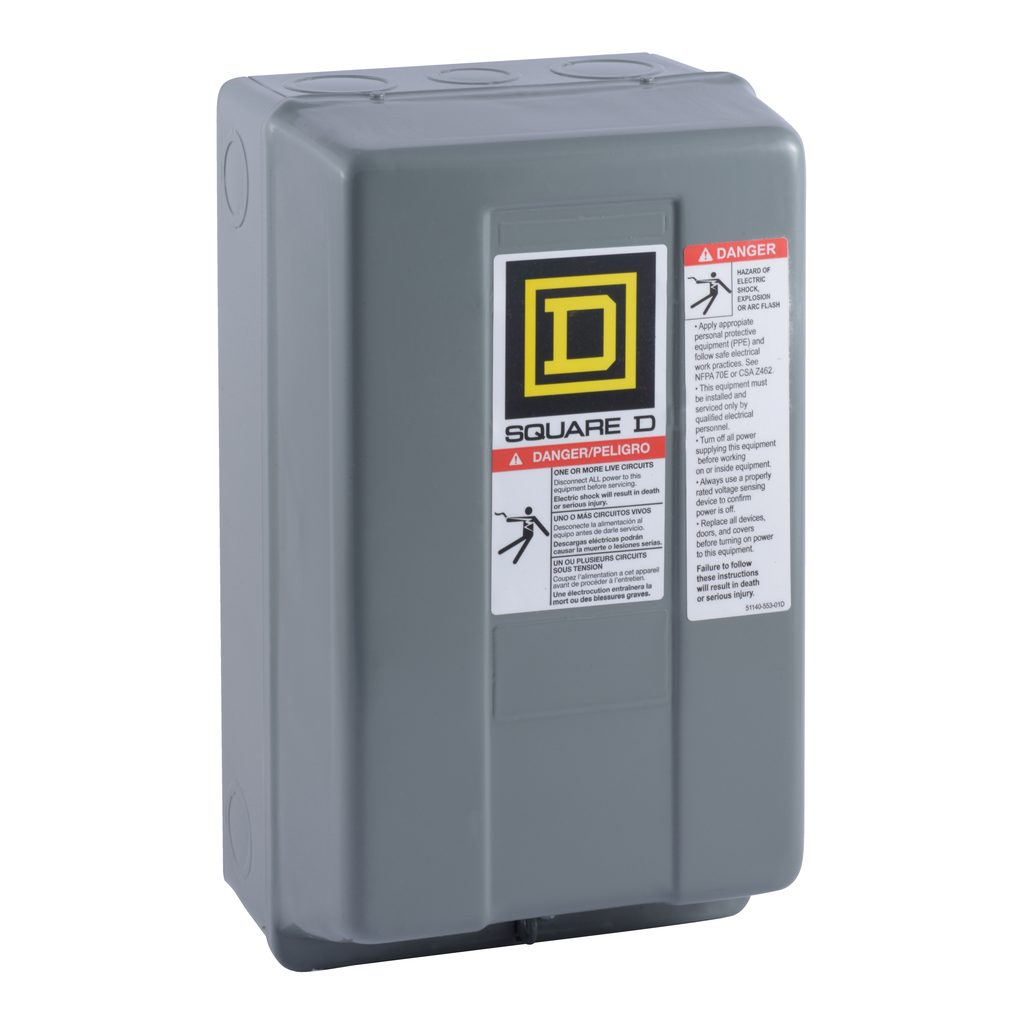

Contactor, Type S, multipole lighting, mechanically held, 30A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1
8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. This contactor is designed to switch 30 amperes. This 3 pole device has 3 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.28 inches deep. A wide variety of accessories are available for Type S lighting contactors. 8903S lighting contactors are UL Listed and CSA Certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1 painted sheet steel surface none |
| Warranty | 18 months |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| Height | 254 mm |
| Auxiliary Contact Composition | without |
| Control Type | no control units |
| [Uc] Control Circuit Voltage |
|
| Additional Included Device | none |
| Local Signalling | without pilot light |
| Poles Description | 3P |
| Electrical Connection | lugs |
| Line Rated Current | 30 A |
| Width | 152 mm |
| Depth | 134 mm |
| Country of Origin | United States |
| Width | 152 mm |
| Height | 254 mm |
| Range Of Product | S |
| Product Or Component Type | Mechanically Held Lighting Contactor |
