8903L3R

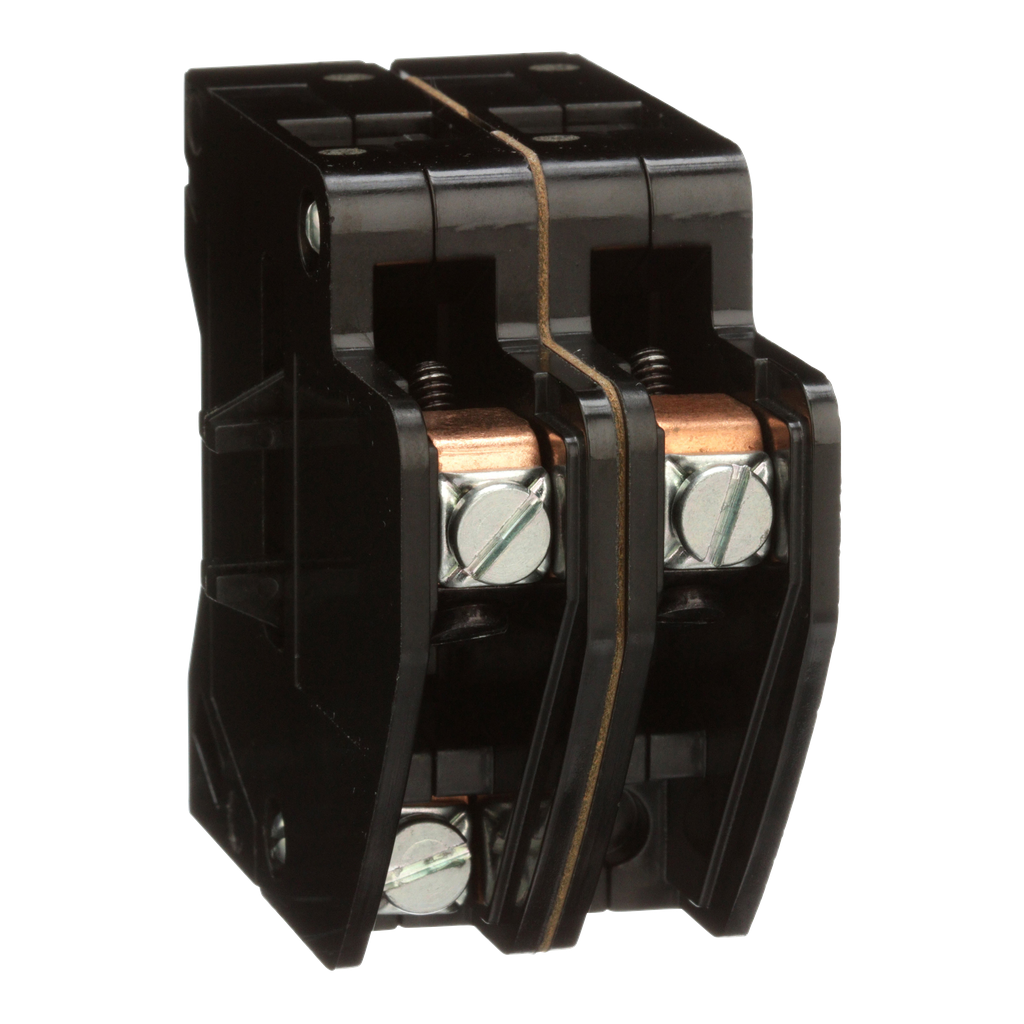

Contactor, Type L, multipole lighting, power pole, 30A, 2 pole, 2 normally open contacts, 600V, right side mount
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This two pole power pole can be added to the right side of any 8903L lighting contactor. This power pole has two normally open contact that can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. 8903L lighting contactors are limited to a maximum of 12 contacts. The power pole is UL Listed and CSA Certified when used with 8903L lighting contactors.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407018EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 77 mm |
| Electrical Connection | screw-clamp terminals |
| Width | 64 mm |
| Depth | 50 mm |
| Country of Origin | Mexico |
| Width | 64 mm |
| Height | 77 mm |
| Range Of Product | 8903L |
| Product Or Component Type | Auxiliary Contact Module |
Documents
- 8903L Electrically Held AC Lighting Contactors Installation Sheet - 30072-013-31_01 (pdf)
- Spec Sheet
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Square D Lighting Contactors Catalog - 8903CT9701 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
