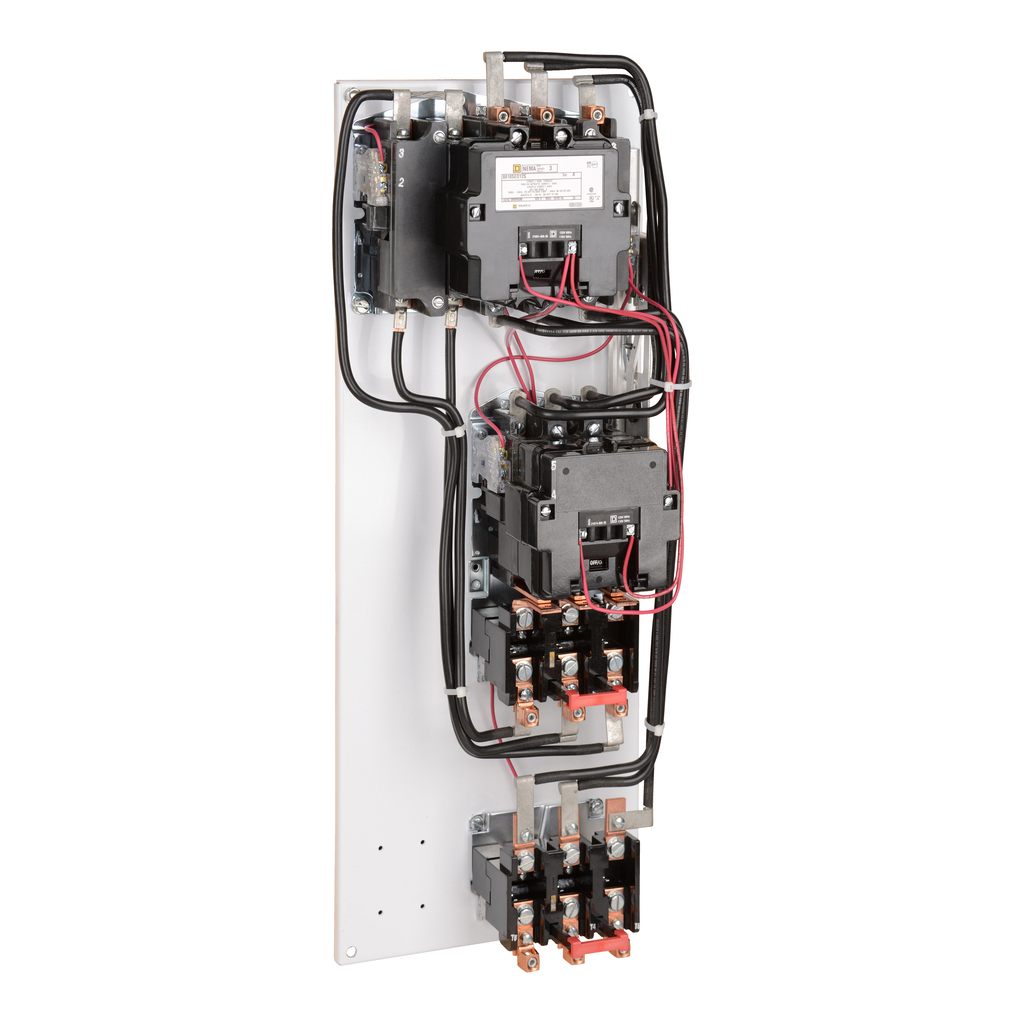

8810SEO12V02S - Two Speed Starter, Size 3, 3-Pole, Melting Alloy OLR, Open, 120/110V 60/50Hz

8810SEO12V02S

Add to Quote Catalogue

Product Certifications	UL listed file E78351 CCN NLDX CSA LR60905 class 3211 04
Warranty	18 months
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Not compliant
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Motor Starter Type	2 speed
Local Signalling	without pilot light
Thermal Overload Type	melting alloy
Auxiliary Contact Composition	without
Control Type	Without
Nema Size	3
Number Of Thermal Units Required	6
Asynchronous Motor Control Profile	constant/variable torque
Maximum Horse Power Rating	30-30 hp 230 V AC, 3 phase 25-25 hp 200 V AC, 3 phase 50-50 hp 460/575 V AC, 3 phase 50-50 hp 380 V AC, 3 phase
[Uc] Control Circuit Voltage	110 V AC 50 Hz 120 V AC 60 Hz
Nema Degree Of Protection	not rated (open device)
Poles Description	3P
Electrical Connection	lugs
Line Rated Current	90 A
Control Circuit	separate control circuit
[Ue] Rated Operational Voltage	600 V AC
Country of Origin	Mexico
Range Of Product	type S
Product Or Component Type	starter
